MAKE: CREATIVE LAB
MODEL NO:-CLHT-06
DESCRIPTION:

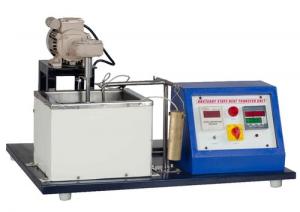

The apparatus consists of a small test cylinder. The cylinder is Heated by a constant temperature water bath, till steady state is reached. During heating, temperature of the cylinder is function of time and hence, heating of cylinder is under unsteady state Heat transfer. The temperature of cylinder is measured with the help of temperature sensor inserted in the centre. The hot water bath is provided with a heater and is controlled by digital temperature controller. An agitator is also provided to maintain the constant bath temperature.
EXPERIMENTATION
To calculate the Biot number, Fourier number and hence the heat transfer coefficient.
To plot Heisler Chart for the given sample of cylindrical solid.
UTILITIES REQUIRED
Electricity Supply: 1 Phase, 220 V AC, 1 kW.
Bench area of 1.5 m x 1.5 m.
TECHNICAL DETAILS
Water Bath: Material - stainless steel Capacity-8 lit. (Approx.)
Stirrer for Bath: Stainless Steel Impeller with shaft coupled to a FHP motor.
Heater: Nichrome wire heater
Test Cylinder: One each of Stainless Steel & Brass.
Control Panel comprises of :
Digital Temp. Controller: 0-199.90C, (For Water Bath)
Digital Temp. Indicator : 0-199.90C,
Temperature Sensors : RTD PT-100 type
With Standard make On/Off switch, Mains Indicator etc.
Instruction Manual : An ENGLISH instruction manual will be provided along with the Apparatus
The whole set-up is well designed and arranged on a powder-coated structure.
|
