TORSION TESTING MACHINE
 TECHNICAL DETAIL

 Digital Torsion Testing Machine, 100 NM Capacity

Suitable for torsion and twist tests on various metal rods and flats. Torsion measurement by torque cell. One range with high resolution throughout the range. Geared motor to apply the torque to specimen through gear box. Measurement of angle of twist by rotary encoder.

Display of torque and angle of twist on LCD display provided on data acquisition system, Facility for connecting the DAS panel to PC Accuracy of torque measurement +/- 1% in the range from 4% to 100% of machine capacity. Provision to conduct test slowly by a handle facilitates finding modulus of rigidity

Max. torque capacity (Nm): 100

Torque Resolution (Nm): 0.01

Angle of Twist (Degree): 0.1

Torsion speed and direction : 1.5 RPM Reverse

Distance between grips (mm): 0-400

Grips for round bar of dia (mm) : 4-8, 8-12

Grips for flat bars: 2-8

thickness width 25

Three phase 440 V, 50 Hz, Motor HP: 0.5

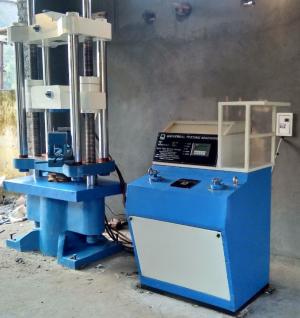

COMPUTERISED UNIVERSAL TESTING MACHINE 6 PILLAR
TECHNICAL DETAIL
Universal Testing Machine Computerized 1000 KN capacity. 6 pillar, with Hydraulic Jaws
Resolution: 0.01 Kn
Maximum clearance for tensile test: 50-850 mm
Maximum clearance for compression test : 0-850 mm
Clearance between columns: 750 mm. 5
Clamping specimen jaws for flat specimen thickness: 0-40 mm
Pair of compression plates: 220 mm dia
Ram stroke: 250 mm
Straining speed at no load: 0- 80 mm
Computer 500 GB hard discmonitor supports 1024 x 768 resolution & printer will be provided.
Loading accuracy as high as ± 1% of the indicating value
Strain measurement at variable speed to cover a wide range of materials adjustable by  the manual control valve.
High reading accuracy and rugged design of digital display.
Simple control to facilitate ease of operation.
Fully enclosed and protected load measuring system.
Robust load frame with extremely rigid construction.
Large effective clearance between columns enables testing of standard specimen as well  as structures.

UNIVERSAL TESTING MACHINE MAKE : CREATIVE LAB MODEL NO:CLSOM-01
DESCRIPTION
Max. Capacity 20 Ton with attachments, designed for conducting tests on various types of ferrous and non-ferrous materials comprising following
TECHNICAL DETAIL
 Type  Digital
 Max. cap. 20 Ton ,
 Dimension LxWxH, 2060x750x2180mm
 Size dia – 8mm to 20mm, Shear dia size – 12mm.
 Measuring range-0 to 4, 0 to 10, 0 to 20, 0 to 40
 Minimum graduation, 25 kgf
 Clearance of tensile,50-700mm
 Clearance of compression test, 0-700mm
 Clearance between columns, 500 mm
 Ram Stroke, 200mm
 Motor, 2.3H.P., 400-440 V
 Standard Accessories for Tension test, compression test & transverse test


COMPUTERISED UNIVERSAL TESTING MACHINE MAKE : CREATIVE LAB MODEL NO:CLSOM-02
DESCRIPTION
Universal Testing Machine Capacity 1000KN with attachments, designed for conducting tests on various types of ferrous and non-ferrous materials comprising following specs-
TECHNICAL SPECIFICATIONS:
 Measuring Capacity (kN): 1000
 Max. Tensile Clearance at fully descended piston position (mm): 50-850
 Max. Clearance for Compression Test (mm): 0-850
 Distance between columns (mm): 750
 Piston Stroke (mm): 250
 Max. Straining Speed at no load (mm/min): 80
 Power Supply: 3 Phase 415V 50Hz AC
 Measuring Capacity (KN): 1000
 Measuring Range (KN): 0-1000
 Least Count (kN): 0.1
 Load Range in kN with accuracy of measurement ± 1% : 20 to 1000
 Resolution of Piston Movement (mm): 0.1
 Over all dimensions approx. (mm) : 2350 x 800 x 2700
 Weight approx. (kg): 3000
 High-speed Data with scient and elongation.
 Windows based various tests and done in history
 Software is Menu through tests.
 Test reports and speed (If acquisition & Interface card -to acquire data for load Software: Software can run can recall data for any test Saved).
 Driven for easy navigation graphs directly printed on after the test is complete commands. of Data with Database Result Units Selectable as : ( / Kgf ( 2) For mm 1000 KN terminal printer through direct print
Storage and Retrieval support Data and 1) For load: kN Elongation/Displacement
 Instruction manual will be provided alone with the apparatus



COMBINED ROCKWELL & BRINELL HARDNESS TESTER MAKE : CREATIVE LAB MODEL NO:CLSOM-04
TECHNICAL DETAIL
Equipped with a set of ball bearings conducting Brinell, Rockwell Method tests.
 Load range, 60-100-150-187.5 kg.
  One Diamond Indenter with 120 degree cone angle & 0.2mm tip radious
 One- 1/16” dia steel ball indenter
 One- 2.5mm dia steel ball inventor
 A set of HRC, HRB and Brinell Hardness Test Plates.
 Testing table of 50mm dia and V-shaped support for round bars up to 30 mm dia
 One- Microscope for measuring the ball indentation
 One –bottle of dashpot oil allen key and one instructional manual
  Throat depth, Height & Base- 160+/-10mm x270+/- 10mm, 480x160mm
