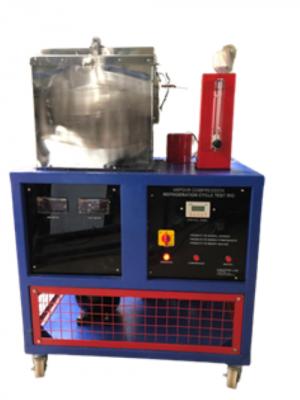

REFRIGERATION TEST RIG MAKE : CREATIVE LAB MODEL NO:CLRAC-01
DESCRIPTION
The set up demonstrates the students about the basic principal of a refrigeration cycle. The test rig is designed for the study of thermodynamics of vapour Compression refrigeration cycle by way of demonstration and experimentation. It has a facility to measure various parameters for experimentation.
EXPERIMENTATION:
To calculate refrigerant capacity.
To Study the Vapour Compression refrigerator cycle.
To Calculate Co-efficient of performance and draw P-H Diagram.
UTILITY REQUIRED:
Electric supply 5A-220 V AC
Water supply and drainage
Floor area : 1.5 m x 1m
TECHNICAL DETAIL:
Compressor Hermitically sealed compressor. Capacity 1/3 Ton, Kirloskar make.







Agitator Compatible capacity.

Condenser Air cooled compatible to 1/3 Ton compressor
Condenser Cooling fan Compatible capacity with permanent lubricated motor.
Evaporator Made of Stainless Steel, Insulated with ceramic wool/P.U.F.
Expansion Device  Capillary Tube, Compatible Capacity.
Pressure Gauges 2 Nos.
Safety Control overload and over current protectors for compressor and Time delay circuit.
Temperature Sensor  RTD PT-100 Type.
Control Panel comprises of        :
Digital Voltmeter  0-300 V
Digital Ammeter  0-5 Amp.
Temperature Measurement  Digital Temperature Indicator with multi-channel switch.
All Other accessories like Hand shut off valves, filter drier and Thermostat will be provided.
All the accessories will be mounted on a rigid base frame made of M.S. and it will be powder coated.



AIR CONDITIONER TRAINER- DUCT TYPE MAKE : CREATIVE LAB MODEL NO:-CLRAC-02
DESCRIPTION:
The Air Conditioning Trainer duct type unit is required to conduct experiments and demonstrate the process of cooling of atmospheric air. The unit will be fitted with all instruments facilities so that temperature, pressure etc. may be measured at different points in the air conditioning system.
EXPERIMENTATION:
To study the Air Conditioning Trainer duct type
To Calculate Co-efficient of performance- (COP) by the use of P-H diagram.
UTILITY REQUIRED:
Electric supply 5A-220 V AC
Floor area : 1.5 m x 1m
TECHNICAL DETAIL:
Compressor : Hermitically sealed compressor, reciprocating type. Capacity 1 Ton, Emerson Copeland make. Condenser : Finned Tube type, Air cooled compatible to compressor Condenser cooling fan : Compatible capacity with permanent lubricated motor.
Pressure Gauges : 2 Nos. (For suction & discharge pressure)
Evaporator : Made of copper tube and aluminum fins fitted with Compatible capacity fan.
Safety Control : Over load and over current protection for Compressor with Time delay circuit with Low/high voltage auto-cut.
Expansion Device : Capillary Tube compatible capacity.
Temperature Sensor : RTD PT-100 Type.
Control Panel comprises of : Digital Voltmeter : 0-500 V
Digital Ammeter : 0-19.99Amp.
Temperature Measurement : Digital Temperature Indicator with multi-channel switch. With mains indicator, Standard make On-off switch etc.
All Other accessories like Hand shut off valves, filter drier and Thermostat (Danfoss make) will be provided.
An ENGLISH instruction manual consisting of experimental procedures, block diagram etc. will be provided along with the Apparatus

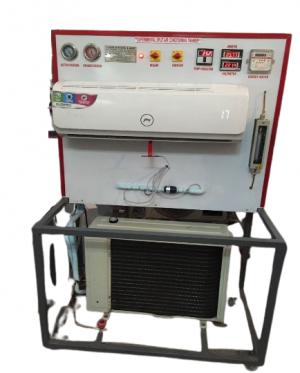

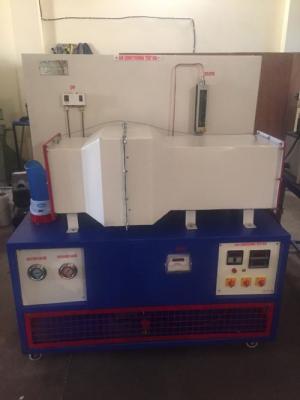

SPLIT AIR CONDITIONING TEST RIG MAKE : CREATIVE LAB MODEL NO:-CLRAC-03
DESCRIPTION:
The Air Conditioning Test Rig unit is required to conduct experiments and demonstrate the process of cooling of atmospheric air. The unit will be fitted with all instruments facilities so that temperature, pressure etc. may be measured at different points in the air conditioning system.
EXPERIMENTATION:
To study the Vapour Compression air conditioning cycle.
To Calculate Co-efficient of performance- (COP) by the use of P-H diagram.
UTILITY REQUIRED:
Electric supply 5A-220 V AC
Floor area : 1.5 m x 1m
TECHNICAL DETAIL:
Compressor Hermitically sealed compressor. Capacity 1 Ton, Kirloskar make.
Condenser Air cooled compatible to 1 Ton compressor
Condenser Cooling fan Compatible capacity with permanent lubricated motor.
Pressure Gauges 2 Nos.
Evaporator Compatible to 1 Ton, made of copper tube and aluminum fins fitted with compatible capacity fan.
Safety Control over load and over current protection for Compressor with Time delay circuit.
Expansion Device Capillary Tube compatible capacity.
Temperature Sensor RTD PT-100 Type.
Temperature Measurement Digital Temperature Indicator with multi-channel switch.
Instruction Manual An ENGLISH instruction manual will be provided along with the Apparatus
All Other accessories like Hand shut off valves, filter drier and Thermostat, Pressure gauges will be provided.
All the accessories will be mounted as rigid base frame made of M.S. and it will be powder coated.

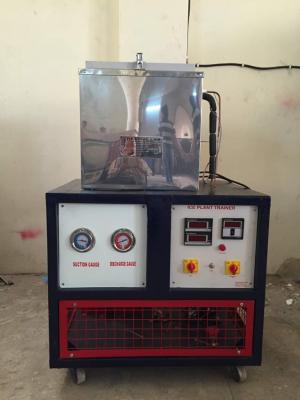

ICE PLANT TRAINER MAKE : CREATIVE LAB MODEL NO:-CLRAC-05
DESCRIPTION:
The unit enables the students to study the Basic Principals of ice plant cycle within a short period. The test rig is designed for the study of thermodynamics of vapour Compression refrigeration cycle by way of demonstration and experimentation. It has a facility to measure various parameters for experimentation. Ice cans are kept in liquid tank, which is cooled by the refrigerant evaporator. As conventional ice plants take 12-24 hours to complete the cycle, this ice plant is specially designed to demonstrate process of ice formation to be complete within period of 4 hours and hence it is most suitable for laboratory use.
EXPERIMENTATION:
To study the working of Ice Plant.
To Study the refrigerator circuit.
To Calculate Co-efficient of performance
UTILITY REQUIRED:
Electric supply 5A-220 V AC
Water supply and drainage
Floor area : 1.5 m x 1m
TECHNICAL DETAIL:
Compressor Hermitically sealed compressor, Kirloskar make.
Tank The inner tank shall be fabricated out of stainless steel
Condenser Air cooled compatible to compressor
Condenser Cooling fan Compatible capacity with permanent lubricated motor.
Evaporator Made of Stainless Steel, Insulated with ceramic wool/puf.
Expansion Device Capillary Tube Compatible capacity.
Pressure Gauges 2 Nos.
Safety Control overload and over current protectors for compressor and Time delay circuit.
Temperature Sensor RTD PT-100 Type.
Control Panel comprises of
Digital Voltmeter 0-300 V
Digital Ammeter 0-5 Amp.
Temperature Measurement Digital Temperature Indicator with multi-channel switch.
Instruction Manual An ENGLISH instruction manual will be provided along with the Apparatus
All Other accessories like filter drier will be provided.
All the accessories will be mounted on rigid base frame made of M.S. and it will be powder coated.



WATER TO WATER HEAT PUMP TEST RIG MAKE : CREATIVE LAB MODEL NO:07
DESCRIPTION:
Heat Pump and the refrigerating machine basically work on one and the same principle and with the same components. Heat pump is a machine, which delivers heat at a temperature suitable for domestic, Industrial and Commercial purposes. By added work input form the motor or engine it extracts heat from low-grade source. In many circumstances heat pumps can make valuable contribution to energy conservation. The majority of heat pumps operate on the vapour compression cycle using a refrigerant as the working fluid. Heat pump is fully sealed R-134A refrigerant system using water-to-water pumping principle. The equipment produces realistic results and has low thermal inertia so that unit stabilises very quickly and enables student’s maximum experimentation.
EXPERIMENTATION:
Determination of co-efficient of performance of the unit when working as water-to-water heat pump.
To Construction of Energy balances for completed system over a range of operating conditions.
To determine overall heat transfer co-efficient for condenser and evaporator.
UTILITY REQUIRED:
Electric supply 5A-220 V AC
Water supply and drainage
Floor area : 1.5 m x 1m
TECHNICAL DETAIL:
Compressor Hermitically sealed compressor. Capacity 1/3 Ton, Kirloskar make.
Condenser Water cooled type shell and coil condenser with refrigerant inside the tube.
Water flow measurement Provided with individual rotameters and four temperature sensor for both condenser and evaporator.
Expansion Valve Capillary Tube, Compatible Capacity.
Safety Control Overload and over current protectors for compressor and Time delay circuit.
Evaporator Water cooled Compatible capacity.
Temperature Sensor       RTD PT-100 Type.
Control Panel comprises of
Digital Voltmeter 0-300 V
Digital Ammeter 0-5 Amp.
Temperature Measurement Digital Temperature Indicator with multi-channel switch.
Instruction Manual An ENGLISH instruction manual will be provided along with the Apparatus
All the accessories will be mounted on a rigid base frame made of M.S. and it will be powder coated.
