| TECHNICAL DETAIL
As per IS:4031 (Part - 3)

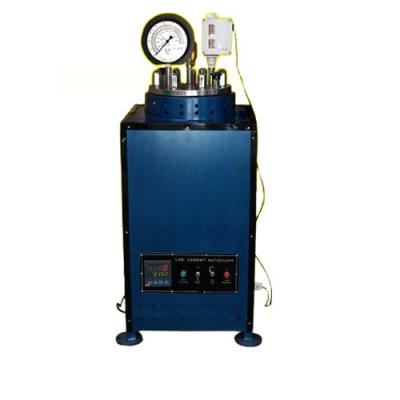

Suitable for conducting accelerated soundness tests on Cement or the Autoclave expansion test. Stainless Steel Pressure Vessel with insulated outer shell. Pressure controled throuighmicro processor based PID
controller. Equipped with spring loaded safety valve pressure gauge, PID controller with RTD for control of Heater unit.
Three fold safety mechanism
Reliable silicon rubber lid sealing gasket
Working Pressure : 21 ± 1kg / cm at 215° C
Pressure Vessel : ID 150mm X Depth 500 mm
Weight : 70 Kg
Heater : 2000 Watts
Supply : 220V, 50Hz, 1 phase
Machine supplied with :- Rubber Gasket, Viton 1 No.
Pressure Gauge, 0-42kg/cm
Temperature Controller with Sensor Shrinkage Bar Mould, four compartments with smooth reference point, Length Comparator Digital
