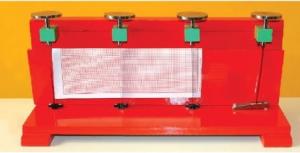

BEHAVIOUR OF COLUMN AND STRUTS APPARATUS MAKE :CREATIVE LAB MODEL NO:CLSL-02
 DESCRIPTION

Apparatus consist of four spring steel columns which are put along a vertical wooden board. These four columns have different end conditions as below: 1. Both ends pinned 2. Both ends fixed 3. One end pinned and other fixed 4. One end fixed and other end free Apparatus will be supplied complete with a supporting stand and a set of weights.



CURVED MEMBER APPARATUS MAKE : CREATIVE LAB MODEL NO:CLSL-03
 DESCRIPTION
Apparatus consists of a steel bar which is used to make the different curved member Viz. circle, semicircle with straight arm, a quadrant of a circle and quadrant of a circle with straight arm. The bottom ends of the members are fixed to the base. Under the application of load at free end, its horizontal and vertical deflection can be measured with the help of dial gauges. A dial gauge with 25mm travel (with a magnetic base) is supplied with the apparatus. Apparatus will be supplied complete with a supporting stand and a set of weights.

DEFLECTION OF BEAM APPARATUS MAKE : CREATIVE LAB MODEL NO:CLSL-04
 DESCRIPTION
The bench mounted apparatus has a steel base with support at ends. The supports can be fitted with knife edges or clamp plates. A steel beam and two load hangers are supplied together with two dial gauges for measuring beam deflections and slopes. This equipment is part of a ranged to both, demonstrate and experimentally confirm basic engineering principles. Great care has been given to each item so as to provide wide experimental scope without unduly complicating or compromising the design. Each piece of apparatus is self-contained and compact. Setting up time is minimal, and all measurements are made with the simplest possible instrumentation, so that the student involvement is purely with the engineering principles being taught. A complete instruction manual is provided describing the apparatus, its application, experimental procedure and typical test results.



ELASTIC PROPERTIES OF DEFLECTED BEAM APPARATUS MAKE : CTREATIVE LAB MODEL NO:CLSL-05
DESCRIPTION
Apparatus consists of a mild steel beam 2.5cm X 3mm in cross section and 100cm long, pinned to two supports 70cm apart situated symmetrically. One of the ends can be fixed or given a known slope by applying a known moment at the end with the help of suspended loads. At the other end also a known moment can be applied. Vertical loads can be applied at various points along the span of the beam. A Dial gauge with 25mm travel ( with a magnetic base) may be supplied with the apparatus. Apparatus to be supplied should be complete with a supporting stand and a set of weights.

THREE HINGED ARCH APPARATUS MAKE : CREATIVE LAB MODEL NO:CLSL-06
 DESCRIPTION
Experimental and analytical study of 3 hinged arch and influence line for horizontal thrust.
The model has span of 100cm and rise 25cm, with hinges at supports and crown. One of the ends rests on rollers. Along the horizontal span of the arch various points are marked at equidistant for the application of load. This being a statically determinate structure, the horizontal thrust developed under the action of any load system can be theoretically calculated and will also be measured directly by neutralizing the outward movement of the roller end. A dial gauge with 25mm travel (with magnetic base) is supplied with the apparatus . Apparatus is supplied complete with a supporting stand and a set of weights.
