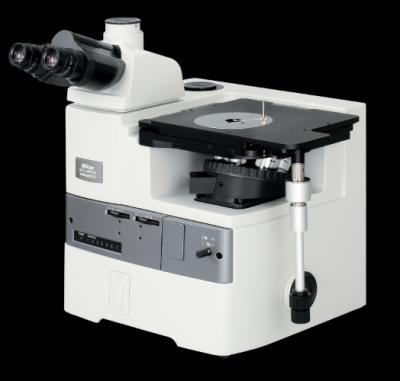

Metallurgical inverted microscope

Observation method:

Bright/Darkfield/Simple Polarizing/DIC/Epi-Fluorescence

Power input: 100-240 V, 50-60 Hz

Stage: MA-SR Rectangular 3-plate Stage,

50 x 50 mm stroke (includes two stage inserts (ø20mm and 40mm opening) and coaxial control handle on the right side,

Dimension: 295 x 215 mm, Stroke: 50 mm x 50 mm (with distance graduation), Standard accessory: ø22 universal specimen holder (with sample clip)

FEATURES

Special design for large & thin size specimen

Incident light microscopy for metallography Optional Polarizer and Analyzer attachment

12V/50 Watts halogen lamp for better illumination & adjustable brightness

Magnification range 25x to 2000x

Spring loaded objectives at higher magnification to avoid damage to optics or specimen

Coaxial coarse and fine focusing

Perfect transmission system

having localized

illumination and flatness of field

PC interface facility with camera and image analysis measurement software for micro-photograhy

Specifications

Magnification: 100X to 400X with standard eyepieces & objectives

25X to 2000X with optional eyepieces & objectives

Standard Eyepieces: WF 10X / 018mm

Optional Eyepieces: 5X, 15X & 20X, Micrometer 10X with least count = 0.1mm, Filar Micrometer 10X

Grain size measurement WF 10X (08 grains engraved), Objective Micrometer Disc with least count = 0.01 mm

Standard Objectives: Achromatic 05X, 10X, 20X & 40X (Parafocal high quality optics)

Optional Objectives: Achromatic 60X & 100X (Oil)

Viewing Head (45° Angle): Trinocular (three parts, two for visual observation & one for camera attachment) interpupillary distance: 55mm to 75mm

Light Distribution: 50: 50% between camera port & binocular eyepieces

Color Filters: Yellow, Blue, Green & Frosted Glass

Focusing System: Coaxial coarse & fine focus system

Nosepiece: Quadruple (Backward ball bearing inner locating)

Polarizer & Analyzer: Set of polarizer & Analyzer attachment (Available, Optional)

Mechanical Stage: Two layer & three-axis moveable with coaxial X-Y movement. Size: 170 X 135mm & Travel : 30mm X 30mm, Stage plate hole : 010mm, 020mm

Illuminator: 12V / 50W, 220V AC/50Hz, Halogen lamp, adjustable brightness

Inbuilt grain boundary/grain size/misorientation, etc. analysis software with latest processing unit

Resolving nosepieces:

MA2-NUI5: Bright/Darkfield/ DIC 5 position nosepiece, LV-NU5A: Motorized Bright/Darkfield/DIC 5 position nosepiece,

D-NID6: Brightfield 6 position nosepiece (Intelligent), D-NI7: Brightfield 7 position nosepiece (Intelligent). Inbuilt grain boundary/grain size/misorientation, etc. analysis software latest with processing unit

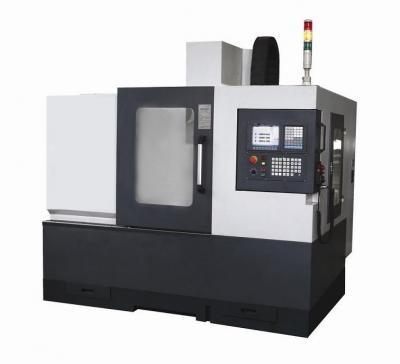

Computer Numerical Controlled (CNC) Milling Machine

Controller: CNC Fanuc.

Automation

Type: Automatic

Maximum

loading capacity: 50 kg

Power supply: Three phase 380-440V, 50 60 Hz cycles

Table Size: 480 x 180 mm

Maximum load on Table: 50 Kg

Tool change unit: 8-station automatic tool changer

X Y Z Axis: 250 150 220 mm

Rapid traverse: 5000 mm min

Programmable feed rate: 0-5000 mm min

accessories

Travels X axis: 400mm Y axis: 300mm Z axis: 400mm Dist. From spindle face to table top: 125-525mm

Table Table size: 650x300mm Max.

Metallurgical Specimen Cutting Machine Abrasive Cut Off Machine

Max. cutting section: 55x55mm

Rotating speed: 2860 RPM

Power supply: Three phases, 220V/380V,50Hz

Overall dimensions: 450x475x400 mm

Net Weight: 80kg

Cutting Disc: 250mm

Motor: 3HP, 2.2KW

Coolant tank fitted with pump

Cutting Capacity Up to 80/100/120 mm Dia

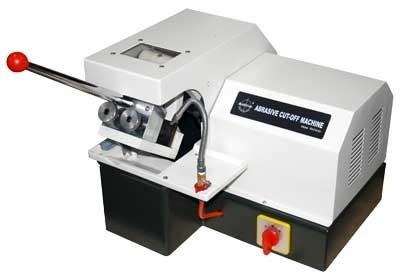

ABRASIVE CUT OFF MACHINE

3/5/7.5 HP, 3 Phase 1440 RPM AC Motor

0.10 KW Single Phase Coolant Pump

Max Cutting Wheel Size : 350X31.75X2 mm

Spindle Speed 2800 RPM

Self Centering 360 Revolving Vice 100/120/140 mm Opening

X-Y Movement for Sample Adjustment

Small opening in the side wall of the hood for sectioning extra long samples.

Specially designed Vice to hold any kind of piece.

Absolute minimal deformation, cool & burn-free sample production.

Cutting Operation By manual cut-off wheel in chop type procedure.

Cooling by two high flow water jets to provide optimum cooling

CNC Fiber Laser Cutting Machine

Processing area: 3000mm*1500mm

Fiber power: Max Photonics 1000W

Cooling mode: Water cooling and protection system

Resetting positioning accuracy: ±0.01mm

Max acceleration: 1.2G

Compatible Software: CorelDraw/AutoCAD/Photoshop/AI…

Max traveling speed: 110m/min

Support graphic format: .LXD/.DXF/.PLT/.AI/.Gerber/.DWG…

Gross power: 12KW

Transmit system: Dual Rack & Pinion type

Operating temperature: 0-45?

Operating humidity: 5-95%

Maximum Cutting Thickness: MS- 8 to 10 mm, SS- 3 to 4 mm

Latest Industrial processing unit

Effective working Size: X Axis 1300, Y Axis 2500 mm

Laser Type: Fibre Laser

Wavelength: 1064 nm

Software: CNC programming with options of importing from Autocad/CATIA etc.

Water Chiller: HAnli

CNC Controller: CypCut

Laser Head Height Controller: BCS 100

Auto Focus Laser Head: Raytools (Switzerland)

Transmission System: Rack & Pinion

Drive system: Dual Drive

Lubrication System: Automatic Centralize Lubrication

Weight of Machine: 2.5 ton (Approx)

Bellow Cover: Stainless Steel Bellow

Rack and pinion Drive: Helical type

Nesting Software: CypCut

Transformer: Included

Laser Source: 1000 W (Raycus)

Computer: Industrial
