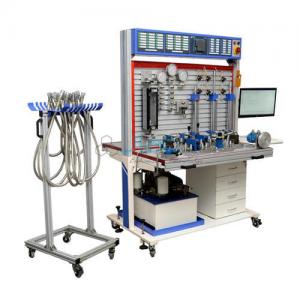

HYDRAULIC TRAINING KIT MAKE: CREATIVE LAB MODEL NO:CLTD-21
Description
Hydraulic Training Kit The Hydraulic Training Kit would be hydraulic based standalone training kit which would cover pure hydraulic systems, Electro hydraulic systems & Analysis and control technology. The kit would have items for PC-supported acquisition, representation and documentation of analogue measured values in hydraulic components and systems. The kit would facilitate learning and demonstration of following topics:
FEATURES:
Self-combined mobile unit.
All the components are easily accessible.
Real life components of reputed manufacturers provided.
Quick connections possible due to special fittings/pipes.
Tried and tested components and circuits.
PLC with MODBUS communication.
PLC with software with help file
Specially designed control panel enabling students to develop their own circuits
Modular design with facilities to operate simple mechanisms
Pneumatically operated models available as additional supply
Training of Trainers offered at regular intervals
Three years performance guarantee for any manufacturing defect
TECHNICAL DETAIL
List of Experiments:
Study of pressure built up & setting relief valve pressure in hydraulic system
Study of 4/3 way direction control valve
Operation of single acting cylinder with 4/3 way direction control valve
Operation of double acting cylinder with 4/3 way direction control valve
Operation of hydraulic motor with 4/3 way direction control valve
Study of sequence valve
Sequencing of double acting cylinder & single acting cylinder
Sequencing of single acting cylinder & hydraulic motor
Meter- in speed control of hydraulic cylinder
Meter-out speed control of hydraulic cylinder
Study of bleed- off speed control circuit
Study of Pressure adjustment /setting of relief valve
Study of Throttle valve pressure flow characteristics
Study of direction control valves and pilot operated check valves and circuits
Study of Regenerative Circuit
Study of pressure reducing valve
Study of sequence valve and setting sequence valve pressure
LIST OF COMPONENTS:
Trolley with frame & caster wheels
Hydraulic tank with filter & breather
Single phase flange mounted electric motor
Pressure Gauges
Gear Pump
Bell Housing
Flexible Coupling
Pressure Relief Valve
Flow Control Valve
Pressure Sequence Valve
4/3 way manually operated direction control valve
Single Acting Cylinder
Double Acting Cylinder
Needle Valve
Study of sequence valve and setting sequence valve pressure
Hoses
Check Valve
Pilot Operated Check Valve
Hydraulic Motor
Quick Coupling
Instruction manual will be provided along with the apparatus.

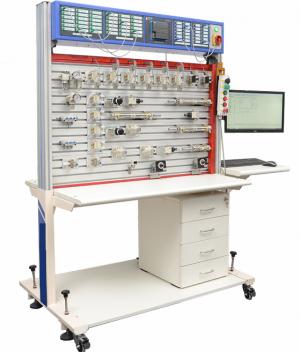

PNEUMATIC TRAINING KIT MAKE: CREATIVE LAB MODEL NO CLTD-23
 Description
 Pneumatic Training Kit: The Pneumatic Training Kit would be pneumatic based standalone training kit which would cover pure pneumatic systems, Electro pneumatic systems, smart maintenance in pneumatics, Analysis and control technology in pneumatics. The kit would have items for PC supported acquisition, representation and documentation of analogue measured values in pneumatic components and systems. The kit would facilitate learning and demonstration of following topics:
FEATURES OF PNEUMATIC TRAINER:
Self-combined mobile unit.
All the components are easily accessible.
Real life components of reputed manufacturers provided.
Quick connections possible due to special fittings/pipes.
Tried and tested components and circuits.
PLC with MODBUS communication.
PLC with software with help file
Specially designed control panel enabling students to develop their own circuits
Modular design with facilities to operate simple mechanisms
Pneumatically operated models available as additional supply
Training of Trainers offered at regular intervals
Three years performance guarantee for any manufacturing defect
LIST OF EXPERIMENTS:
Operation of a Single Acting Cylinder
Speed Control Of Single Acting Cylinder
Operation of a Single Acting Cylinder with And Gate
Operation of Pneumatic Motor
Speed Control of Pneumatic Motor
Operation of D/A Cylinder with 5/3 Way Lever Operated DC Valve
Speed Control of Double Acting Cylinder with Flow Control (Meter In)
Speed Control of Double Acting Cylinder with Flow Control (Meter Out)
Speed Control of Double Acting Cylinder with Flow Control in Forward & Return Stroke
Sequencing of Pneumatic Motor & Double Acting Cylinder
Sequencing of Double Acting Cylinder with Single Acting Cylinder
Operation of Single Acting Cylinder with 5/2 Way Single Solenoid
Operation of Double Acting Cylinder with 5/2 Way Single Solenoid
Operation of Double Acting Cylinder with 5/2 Way Single Solenoid, AND Gate of Electrical Switch
Operation of a Single Acting Cylinder with OR Gate
Speed Control of Double Acting Cylinder with Flow Control in Forward & Return Stroke
Quick return of Double Acting Cylinder using Quick Exhaust Valve
Two Speed Control of Double Acting Cylinder
Two Speed Control of Pneumatic Motor
Automatic Cycle of Double Acting Cylinder
LIST OF COMPONENTS:
Trolley with frame & caster wheels
Quick Push Pull connector
Plastic Tubing (PU6)
3/2 way Direction Control valve
5/3 way Direction Control valve with Hand Lever
Two Way Valve (AND Gate)
Flow Control valve
Single acting cylinder
5/2 way Single Solenoid
FRL Unit (Filter Regulator & Lubricator)
Starter valve
ounting Plates
T Block
Isolator Block
Pneumatic Motor
Double acting cylinder
Shuttle valve (OR Gate)
Quick Exhaust valve
Isolator Block
Proximity sensor
Instruction manual will be provided along with the apparatus.

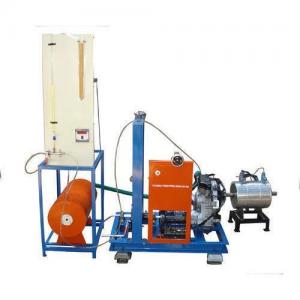

SINGLE CYLINDER TWO STROKE PETROL ENGINE TEST RIG MAKE : CREATIVE LAB MODEL NO:CLTD-01
 DESCRIPTION:
 IC engines are widely used in automobile, domestic and industrial sector. They are classified according to cycle, number of cylinders, arrangement of cylinders, fuel used, and type of ignition, valve arrangement, cooling system. Test rigs are used to find out the performance of an IC engine. It consists of an IC Engine, dynamometer, fuel measuring, air intake measuring and various other arrangements.
EXPERIMENTATION:
To determine Brake Power
To determine fuel consumption
To determine specific fuel consumption
To determine Brake Thermal Efficiency
UTILITY REQUIRED
Electricity Supply: Single Phase, 220V AC, 50 Hz, 5-15 amp. Combined socket with earth connection.
 Water Supply: Continuous @5LPM at 1 Bar pressure.
Floor Drain required
Petrol : 5 liters
2T Engine Oil : 2% of Fuel
Engine Oil : SAE 20W40; 500 ml (approx.)
Exhaust Emission
Floor Area: 2m x 1 m
Technical detail
Type of Engine Single cylinder, two stroke, air cooled, Manual start, self-lubricating, petrol engine (Bajaj make New Engine)
Type of Loading Rope Brake Dynamometer
Torque Measurement: By Brake Drum and spring balances
Eddy Current Dynamometer
Torque Measurement: By spring balances
Fuel Measuring System Fuel measuring system consists of a fuel tank, a burette and a three way cock arrangement.
Air intake Measuring System Air tank fitted with orifice and manometer.
Exhaust gas calorimeter  An Exhaust Gas Calorimeter, made of Stainless Steel will be provided for calculating heat carried away by exhaust gases.
The body of the calorimeter is insulated with ceramic wool and cladded by Aluminum foil.
Digital Temperature indicator with Temperature sensors at appropriate position will be provided.
RPM measurement Techometer
Temperature Measurement Digital Temperature Indicator with multi-channel switch
Temperature Sensors K-Type Thermocouple.
Instruction Manual will be provided along with the Apparatus
The whole setup is well designed and supported by a good quality painted rigid M.S. Structure.

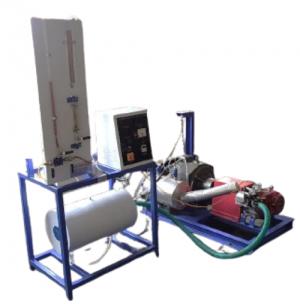

SINGLE CYLINDER FOUR STROKE PETROL ENGINE TEST RIGMAKE : CREATIVE LAB MODEL NO:CLTD-02
 DESCRIPTION:
 IC engines are widely used in automobile, domestic and industrial sector. They are classified according to cycle, number of cylinders, arrangement of cylinders, fuel used, and type of ignition, valve arrangement, cooling system. Test rigs are used to find out the performance of an IC engine. It consists of an IC Engine, dynamometer, fuel measuring, air intake measuring and various other arrangements.
EXPERIMENTATION:
To determine Brake Power
To determine fuel consumption
To determine specific fuel consumption
To determine Brake Thermal Efficiency
Utility required
Electricity Supply: Single Phase, 220V AC, 50 Hz, 5-15 amp. Combined socket with earth connection.
 Water Supply: Continuous @5LPM at 1 Bar pressure.
Floor Drain required
Petrol : 5 liters
Exhaust Emission
Floor Area: 2m x 1 m
Techometer
Technical detail
Type of Engine Single cylinder, Four stroke, air cooled, Hand start, self Lubricating, petrol engine
Type of Loading Rope Brake Dynamometer
Torque Measurement: By Brake Drum and spring balances
 Eddy Current Dynamometer Torque Measurement: By spring balances
Fuel Measuring System  Fuel measuring system consists of a fuel tank, a burette and a three way cock arrangement.
Air intake Measuring System Air tank fitted with orifice and manometer.
Exhaust gas calorimeter  An Exhaust Gas Calorimeter, made of Stainless Steel will be provided for calculating heat carried away by exhaust gases.
The body of the calorimeter is insulated with ceramic wool and cladded by Aluminum foil. Digital Temperature indicator with Temperature sensors at  appropriate position will be provided.
Temperature Measurement Digital Temperature Indicator with multi-channel switch
Temperature Sensors  Thermocouple (4 nos.)



THREE CYLINDER FOUR STROKE DIESEL ENGINE TEST RIG MAKE : CREATIVE LAB MODEL NO:CLTD-03
DESCRIPTION:
IC engines are widely used in automobile, domestic and industrial sector. They are classified according to cycle, number of cylinders, arrangement of cylinders, fuel used, type of ignition, valve arrangement, cooling system. Test rigs are used to find out the performance of an IC engine. It consists of an IC Engine, dynamometer, fuel measuring, air intake measuring and various other arrangements
EXPERIMENTATION:
To determine Brake Power
To determine fuel consumption
To determine specific fuel consumption
To determine mechanical Efficiency
Utility required
Electricity Supply: Single Phase, 220V AC, 50 Hz, 5-15 amp. Combined socket with earth connection.
 Water Supply: Continuous @5LPM at 1 Bar pressure.
Floor Drain required
Petrol : 5 liters
Exhaust Emission
Floor Area: 2m x 1 m
Techometer
Technical detail
Type of Engine Three cylinder Four stroke petrol engine (Maruti Make New Engine)
Type of Loading  Rope Brake Dynamometer
Eddy Current Dynamometer
Hydraulic Break Dynamometer
Fuel Measuring System Fuel measuring system consists of a fuel tank, a burette and a three way cock arrangement.
Air intake Measuring System Air tank fitted with orifice and manometer.
Exhaust gas calorimeter  An Exhaust Gas Calorimeter, made of Stainless Steel will be provided for calculating heat carried away by exhaust gases.
The body of the calorimeter is insulated with      ceramic wool and cladded by Aluminum foil.
Digital   Temperature indicator with Temperature sensors at appropriate position will be provided.
Temperature Measurement Digital Temperature Indicator with multi-channel switch
Temperature Sensors K-Type Thermocouple.
Instruction Manual  will be provided along with the Apparatus
The whole setup is well designed and supported by a good quality painted rigid M.S. Structure.
