AUTOMATIC METALLOGRAPHIC POLISHING MACHINE

TECHNICAL DETAIL

Metallurgical Polishing Machinep

Double Disk

Disk Diameter > 200mm

Adjustable rotation speed 50-600rpm

Flexible waterjet

AC motor with capacity >0.5HP

Loading range: 10-200N

Specimen preparing time: 0-999seconds

Max. diameter of specimen: 30mm

Power supply: 220 V 50Hz

Specimen mounting

Double grinding & polishing discs.

Six pieces Φ30mm samples can be grinded and polished simultaneously.

Both grinding disc and polishing head adopt stepless speed control, and the rotating direction of grinding disc can be shifted.

Electric central force holding, fix the sample and then it can complete the whole process of grinding and polishing, and this can ensure the plane parallelism of sample.

The loading force can be adjusted during running process.

Working time presetting

Quick exchanging disc. The working disc can be changed and replaced swiftly.

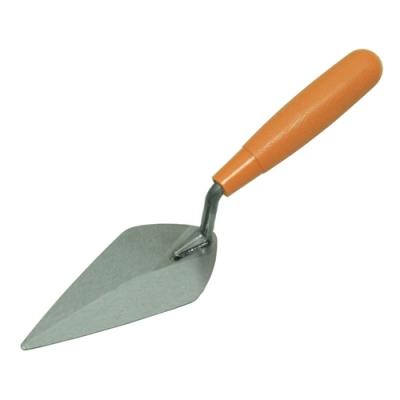

Trowel

Made of iron, standard size

MUFFLE FURNACE MAKE : CREATIVE LAB MODEL NO:CLMM-11

MUFFLE FURNACE

Outer shell made out of thick mild steel duly finished in attractive stoving enamel paint. Fitted with grooved refractory for supporting the heating elements made out of kanthal wire and are easily replaceable. Maximum temp 1000°C with working temp. 940°C controlled by SUNVIC energy regulator. Complete with indicators, pyrometer, thermocouple – thermal fuse etc. workable on 220V AC 50H_z single phase.

Muffle Sizes :

1. 225x100x100mms (9”x4”x4”)

2. 250x125x125mms(10”x5”x5”)

OPTIONAL(Extra Cost)

1.Digital Temp. indicator cum controller

2.Micro Processor PID digital Temperature Indicator cum Controller

SPECIMEN LEVELLER MAKE : CREATIVE LAB MODEL NO:CLMM-12

DESCRIPTION
The Press has unique wedge design helps specimen clamping, perfectly parallel to the grinding disc ensures uniform lapping/grinding. The Press method for ensuring that the metal surface is exactly perpendicular to the optical axis of the microscope.

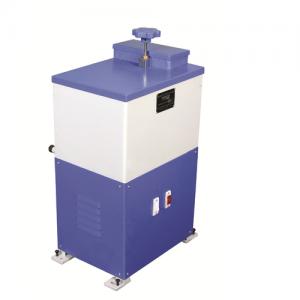

JOMINY END QUENCH MAKE : CREATIVE LAB MODEL NO:CLMM-10

DESCRIPTION

This apparatus is used for determining the Hardenability of steel by an experiment called Quench Test. This experiment will enable the student of know about the Hardenability characteristics of different alloying element.

1. Mild Steel Model

2. Stainless Steel Model
