ROLL CRUSHER MAKE : CREATIVE LAB MODEL NO:CLMO-02
DESCRIPTION:
The Lab setup is used to crush different sample and material. Two heavy Smooth faced chilled metal rolls turning on parallel horizontal axes are the working elements of the roll crusher. A hopper is provided at the top for feeding the material. Particles of feed caught between the rolls are broken in compression and drop out below. The rolls turn towards each other at the same speed. They have relatively narrow faces and are larger in diameter so that they can nip moderately large lumps. Loading bolts are provided for safety. The maximum size of the product is approximately equal to gap between the rolls & it can be adjusted by loading bolts.
EXPERIMENTATION:
To determine the efficiency of the Crusher for crushing a material of known working index.
UTILITY REQUIRED
Raw Material for Feed.
Electric Supply: Single phase, 220 V AC, 3 kW.
Set of Sieves with Sieve Shaker for analysis.
Floor area 1.5 x 1m
TECHNICAL DETAIL
Rolls Material Chilled steel
Dia 200mm, Width 100mm (approx)
Feed Hopper Suitable capacity.
Max Feed Size 6-8 mm (approx.)
Product Discharge Size 1-2 mm.
Drive 2 HP motor couple with reduction gear box to give 48-70 rpm.
Control Panel Comprises of       :
Energy measurement Electronic Energy meter.
Starter  2 HP, Single Phase.
MCB For overload protection.
Instruction Manual An ENGLISH instruction manual will be provided along with the Apparatus
The whole set-up is well designed and arranged in a good quality painted structure.



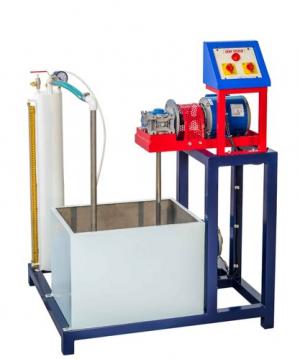

LEAF FILTER MAKE : CREATIVE LAB MODEL NO:CLMO-24
DESCRIPTION
Leaf filters, sometimes called tank filters, they consists of flat filtering elements (leaves) supported in a shell. The leaves are circular, arc-sided, or rectangular, and they have filtering surface on both faces. The shell is a cylindrical tank .The set-up consists of flat filtering elements (leaves) supported in a slurry tank. A filter leaf consists of a perforated plate over which a filter medium of woven fabric is fitted. The whole assembly is connected to a vacuum pump through a filtrate receiver. An agitator is fitted in the slurry tank. Drain valve is provided in it. The set-up is operated batch wise.
EXPERIMENTATION
To determine the specific cake resistance for the given slurry using Leaf Filter
UTILITY REQUIRED
 Electric Supply : Single phase, 220 V AC, 1kW.
 Floor Area : Im x 1.5m
 Water Supply
 Floor Drain.
 Slurry required to performing experiment.
TECHNICAL DETAIL
Leaf filter Dia. 200mm with SS Mesh & filter cloth on both sides.
Slurry Tank  Stainless Steel, capacity 50 Ltrs. (approx.)
Filtrate receiver Stainless Steel column with water level gauge
Vatuum pump Standard make coupled to FHP motor.
Control Panel comprises of : Standard make on off switch, Mains Indicator etc.
An ENGLISH instruction manual consisting of experimental procedures, block diagram etc. will be provided along with the Apparatus
The whole set-up is well designed and arranged on a rigid structure painted with industrial PI: Paint.

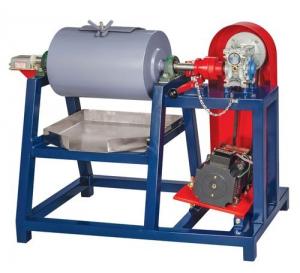

BALL MILL VARIABLE SPEED MAKE : CREATIVE LAB MODEL NO:CLMO-03
DESCRIPTION:
Ball Mills are horizontal rotating cylindrical steel chamber of half filled with steel balls. The size reduction is accomplished by the impact of balls as they fall back after being lifted by the baffles fitted in the rotating chamber. Ball Mill is fitted on a sturdy MS frame. Charging of balls and material is done by the means of opening provided in the chamber. The chamber is turning about the horizontal axis through a reduction gearbox drive through a ½ HP variable speed motor. Drive is provided to vary the RPM. A RPM indicator with proximity switch is provided in the set-up. A revolution counter is provided to find out the number of turns. Special arrangement is done to free the Ball Mill from reduction gearbox for charging and discharging the material.
EXPERIMENTATION:
To study effect of RPM on the power consumption of a Ball Mill.
To determine the efficiency of a Ball Mill for grinding a material of known Wi.
UTILITY REQUIRED
Raw Material for Feed.
Electric Supply : Single phase, 220 V AC, 1 kW.
Set of Sieves with Sieve Shaker for analysis.
Floor area 1.5 x 1m
TECHNICAL DETAIL
Ball Mill  Material MS Dia 275mm, Length 350mm. Thickness 5 mm.
Discharge Chute  Suitable size.
Feed Size  6 mm (approx.)
Product Size 200 mesh (approx.)
Drive     ½ HP, variable speed motor and Drive, coupled to Reduction Gearbox.
Product receiver  Material Stainless Steel of suitable size.
Revolution Counter  Mechanical type.
Control Panel Comprises of
 Energy measurement     Electronic Energy meter
RPM Measurement  Digital RPM Indicator, Non Contact type with Proximity sensor.
Instruction Manual An ENGLISH instruction manual will be provided along with the Apparatus
The set-up is fitted with required guards.
The whole set-up is well designed and arranged in a good quality painted structure.


ROD MILL MAKE : CREATIVE LAB MODEL NO:CLMO-05
DESCRIPTION:
Rod Mills are horizontal rotating cylindrical steel chamber of half filled with steel rods of length slightly less than the length of chamber. The rods are of different diameter. The size reduction is accomplished by the impact of rods as they fall back after being lifted by the rotating chamber. Rod Mill is fitted on a sturdy MS frame. Charging of rods and material is done by the means of opening provided in the chamber. The chamber is turning about the horizontal axis through a reduction gearbox drive through a ½ HP motor. The stepped pulley arrangement is done for moving the Rod Mill at three different speeds. A revolution counter is provided to find out the number of turns. Special arrangement is done to free the Rod Mill from reduction gearbox for charging and discharging the material.
EXPERIMENTATION:
To study effect of RPM on the power consumption of a Rod Mill.
To determine the efficiency of a Rod Mill for grinding a material of known Wi.
UTILITY REQUIRED:
Raw Material for Feed.
Electric Supply: Single phase, 220 V AC, 1 kW.
Set of Sieves with Sieve Shaker for analysis.
Floor area 1.5 x 1m
TECHNICAL DETAIL:
Rod Mill Material MS
Dia 275mm, Length 350mm. Thickness 5 mm.
Discharge Chute Suitable size.
Drive ½ HP motor coupled to Reduction Gearbox & 3 step pulley to get 40, 50 and 60 RPM (Approx.)
Revolution Counter Mechanical type.
Product receiver Material Stainless Steel of suitable size.
Control Panel Comprises of
Energy Measurement Electronic Energy meter.
MCB For overload protection.
Standard make on/off switch, Mains Indicator etc.
Instruction Manual An ENGLISH instruction manual will be provided along with the Apparatus
The set-up is fitted with required guards.
The whole set-up is well designed and arranged in a good quality painted structure.



HAMMER MILL MAKE : CREATIVE LAB MODEL NO:CLMO-06
DESCRIPTION :
Hammer mill consists of Pivoted hammers, mounted on a horizontal shaft. Crushing takes place by impact between the hammers and anvil plate. The hammers delivers heavy blows to the feed material while it is in suspension, driving it against an anvil plate until it is fine enough to pass through the opening of the mesh fitted in the bottom of the Mill.The present Hammer Mill has sturdy housing that contains 4 Nos. of T shaped hammers, pivoted to a disc, which is fitted with the shaft of the mill turning about the horizontal axis. The shaft is directly coupled to a motor. The housing contains a semi-circular teethed liner (or anvil plate) on the top of it. A glass window to see through in the Mill is fixed on the front cover, which can be opened to change the sieve. Different mesh sizes are provided to get different product size. A hopper with feed opening and adjustment is provided in the Mill. The crushed material is collected in a receiver provided in the set-up. This mill can accept a feed size of 6.5mm or less.
EXPERIMENTATION:
To study the operation of a Hammer Mill.
UTILITIES REQUIRED :
Raw Material for Feed.
Electric Supply : 3 Phase, 440 V AC, 2 kW.
Set of Sieves with Sieve Shaker for analysis.
Floor area 0.5 x 0.5m
TECHNICAL DETAILS
Hammer Mill Housing
Material Stainless Steel, Dia 145mm, Depth 75mm
Feed Size 6mm approx.
Product Size 60 - 150 mesh approx.
Hammers Material Stainless Steel, Anvil Plate Size 55mm x 15mm Material Stainless Steel, Teethed Semi-circular Hopper Material Stainless Steel with discharge control arrangement Discharge Chute Suitable size Drive2 HP Crompton motor (Three Phase) Product Receiver Material Stainless Steel of suitable size Starter2 HP Crompton make
