Crushing Value Apparatus
DESCRIPTION
Cylindrical cell 150 mm diameter with fitting plunger and base plate.
 Metal tamping rod of circular cross section 16mm in diameter and 45 to 60 cm long, rounded at one end.
 Conforming to specifications IS 2386 (Part4) & IS 9376.
 Used for measuring resistance of an aggregate to crushing

Aggregate Impact Tester
DESCRIPTION
Accordance with IS:2386 (Part 4), IS:9377.
Used for determining the aggregate impact value.
Heavy circular base with two vertical guides fitted with a cross bar at the top.
 A hammer of 13.75 kg mass which can be raised and allowed to fall freely through 380±5 mm
 Hammer is provided with locking arrangement.
 Tamping rod 10 mm diameter x 230 mm long.
 Cylindrical Cup
 Automatic Blow Counter

Ring and Ball Apparatus
 Used for determining the temperature at which a bituminous material loaded by a 9.5 mm dia steel balls drops under specified heated conditions.
 Magnetic stirrer with heating facility.
 Digital temperature display.
 Tapered Rings - 2 Nos.
 Ball Centering Guide 2 Nos.
 Steel Balls of 9.5 mm dia 2 Nos.
  Ring holder- 1 No.
  Electric Heater (Hot Plate) 1 No.
 Thermometer IP 60C
 Suitable for operation on 220 V, 50 Hz, single phase, AC supply.
 IS: 1205, IP:58

Ductility Testing Machine with Digital Temp Indicator
TECHNICAL DETAIL
Used for determining the ductility of bitumen.
 Two rates of travel i.e. 5 cm/min and 1cm/min.
 Suitable for operation on 220 V, 50 Hz, Single Phase, AC supply.
 Ductility Mould, with Base Plate …3 Nos.
 As per 1208 -1978.
 Made of SS.

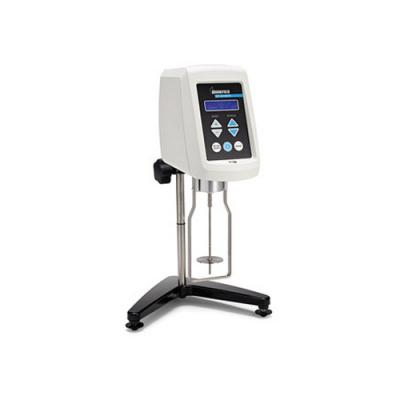

Brookfield Viscometer
DESCRIPTION
Viscometer as per ASTM d4401 & BIS 73 with heater casing,Thermal cover,cup, guard,connector cable,with PT-100 sensor inbuilt.
 Rotational speed-0-1000RPM
 Shear Rate-1/s,s-1(4-1)200
 Torque range-0-10mNm
 Shear Stress-Pa 8-1,500
 Viscosity Pas-0.006-350
 Heater having temp range-0-300 Deg C
 Operating Voltage-230V,50HZ
 Measuring system-DIN53019 C25
 Serial interface-RS 232/USB
 Power consumption-4W
