COMPACTION FACTOR APPARATUS
 DESCRIPTION

Material of Construction: Special quality low carbon mild steel.Paint quality:-Powder coating 70-80 micron thick for determination of workability determination of concrete mixes of very low workability such as those normally used with concrete, compacted by vibration. Concrete mix having maximum size of aggregate not exceeding 38 mm, can be tested for workability. Compaction Factor Apparatus is complete with hoppers and receiver assembly, Tamping Rod of 16 mm dia x 60 cm long having a Hooper and two trowels. As per IS- 1199, 5515 & BS 1881-103.


SLUMP TEST APPARATUS
 DESCRIPTION

Slump Test Apparatus with testing rod and base plate, consisting of Slump Cone, Base plate

(200mm and height 300mm) with swivel handle, Tamping rod steel, 16 mm dia x 600 mm length as per ISI 7320

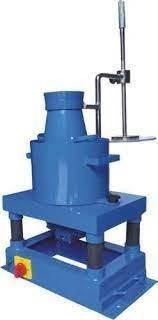

VEE BEE CONSISTO METER
 DESCRIPTION

Material of Construction: Special quality low carbon mild steel with good paint quality Vibrator Table : Min 380*260. Four rubber shock absorbers with A.C. supply motor 415 volts, 3 phase, One metal pot, One slump cone, One swivel arm with metal cone, One graduated rod, One perspex disc. One tamping rod as per IS 1199



OVEN
 DESCRIPTION
Laboratory Electric Oven, with Digital Indicator Cum Controller with Safety Alarm, range 50° to 250°C +/-1°C with Air Circulating Fan, S.S. Inside Minimum Size 450 x450 x 450mm

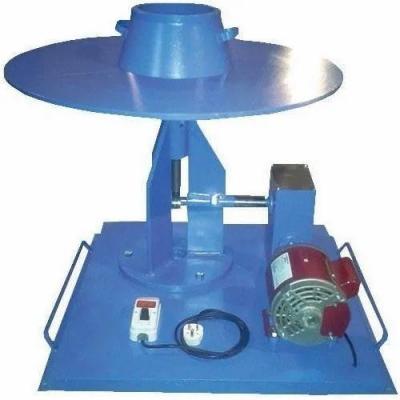

FLOW TABLE
DESCRIPTION
Ref IS:- IS:1199-1959.The Flow Table top would be min. 76.2 cm dia, finely machined from a solid brass casting. The stand isa of cast iron and is of sturdy construction, Holes for mounting on foundations are drilled in the base plate. Ground and hardened steel cam is designed to drop the table by 12.5 mm with an electric geared motor (One separate Motor Unit complete with a reduction gear) with Min. 100 RPM, The equipment is supplied alongwith flow mould (The min. base internal diameter is 25 cm, top internal diameter is 17 cm and the height is 12 cm) and tamping rod (made of steel, 16mm in diameter, 60 cm long and rounded at the one end). Suitable for operation with 220 volts, 50 Hz, single phase, AC Supply.
