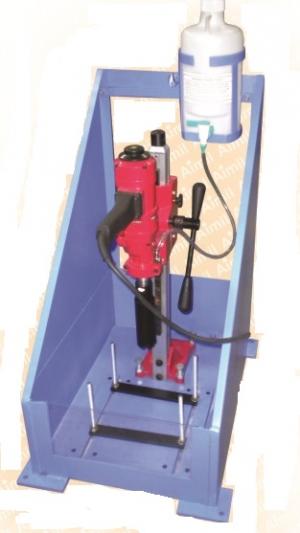

CORE DRILLING MACHINE
 Description:
Machine is designed to cut cores up to 150 mm diameter from concrete, asphalt and similar hard construction materials.
• Heavy duty, pillar type frame with 1500W. • Varying cutting feeds provided with water-fed swivel head which can be connected to suitable water supply. • Provision at base for water collection I drainage. • Core preparation from regular and irregular samples Core size : EX to 100mm. • Clamping arrangement to hold specimens with regular/ irregular shapes to the base of machine. • Two cutting speeds at no load 950/21 OORPM. • Water tank 51tr. is Standard outfit. Suitable for operation on 220 V, one phase, AC supply.


WATER BATH
WATER BATHS
Description:
Water bath Chamber Capacity: >over 18 to 22 litre
Chamber Construction: Double walled rectangular chamber with mineral wool/solid insulation material filling in between
Material of Outer Chamber Construction: Epoxy / Powder coated Stainless Steel SS304
Number of racks provided with Water bath unit: 0
Number of 75 mm diameter Holes provided: 12
Heating Capacity (>=):1500 Watt
Control Panel has: ON/Off Switch, Heating & Temperature (Set & Actual) Indicators, Power mains Indicator, Temperature controller
Adjustable shaking frequency in rpm: NA
Type of Temperature controller: Digital controller cum Indicator PID Based control
Water bath Display type: Digital (numerical/application specific) backlit LCD display
Integrated circulation pump for temperature homogeneity: No
Removable bottom plate and shaking inserts: No
Temperature range of bath chamber: 5°C above ambient to 99.9°C
Temperature control sensitivity: ±0.5°C or better
Least temperature increment Step available: 0.1 degree C
Temperature Accuracy: ±5°C or better
Safety Features: Low fluid Alarm, High limit Alarm, Over temperature Alarm & cutoff, Redundant safety thermostat
Power requirement: 220 V 50 Hz Single Phase AC
Availability of Test Report from Central Govt/NABL/ILAC accredited lab to prove conformity to specification: Yes
Equipment has CE certification: Yes
Warranty Period: 3 year
Timer Provided: Yes
Timer Setting (minimum increment step): 1 second
Drain plug in Chamber provided: No
Data Logging facility through (RS 232/USB/HDMI/Bluetooth etc) to computer available: No
Drain screw for emptying of water bath: No
Seamless and waterproof keypad: Yes
Water Bath Chamber Dimensions, Capacity And Construction
Chamber Length of offered product: 375 inch
Chamber Width of offered product: 300 millimeter
Chamber Depth of offered product: 175 millimeter
Water bath Chamber Capacity >over 18 to 22 litre
Chamber Construction: Double walled rectangular chamber with mineral wool/solid insulation material filling in between
Material of inner Chamber and lid Construction: Stainless Steel (SS 304)
Material of Outer Chamber Construction: Epoxy / Powder coated Stainless Steel SS304
Weight (kg) 11.4
Number of racks provided with Water bath unit 0
Number of 75 mm diameter Holes provided: 12
Heating Arrangement Parameters
Heat source: Heating shall be done by a immersion heater.
Heating Capacity (>=): 1500 Watt
Control Panel And Display Unit
Control Panel has: ON/Off Switch, Heating & Temprature (Set & Actual) Indicators, Power mains Indicator, Temperature controller
Adjustable shaking frequency in rpm NA
Type of Temperature controller Digital controller cum Indicator PID Based control
Water bath Display type: Digital (numerical/application specific) backlit LCD display
Integrated circulation pump for temperature homogeneity No
Removable bottom plate and shaking inserts No
Water Bath Temperature
Temperature range of bath chamber: 5°C above ambient to 99.9°C
Temperature control sensitivity: ±0.5°C or better
Least temperature increment Step available 0.1 degree C
Temperature Accuracy: ±5°C or better
Safety Features: Low fluid Alarm, High limit Alarm, Over temperature Alarm & cutoff, Redundant safety thermostat
Power Requirement, Certifications And Warranty
Power requirement: 220 V 50 Hz Single Phase AC
Availability of Test Report from Central Govt/NABL/ILAC accredited lab to prove conformity to specification Yes
Manufactured by ISO 9001:2008 or latest certified firm: YES
Equipment has CE certification Yes
Warranty Period: 3 year
Cover
Lid/cover Provided Yes
Shape of Cover Gable
Timer Unit
Timer Provided Yes
Timer Setting ( minimum increment step) 1 second
Miscellaneous Features
Drain plug in Chamber provided No
Data Logging facility through (RS 232/USB/HDMI/Bluetooth etc) to computer available: No
Steel holder for tubes and Flasks provided: Yes
Drain screw for emptying of water bath No
Seamless and waterproof keypad Yes
