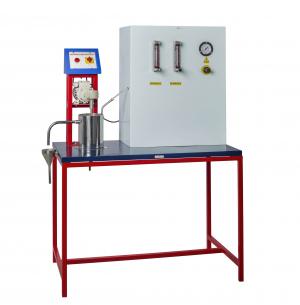

CONTINOUS STIRRED TANK REACTOR (C.S.T.R) MAKE : CREATIVE LAB MODEL NO:CLMT-01
DESCRIPTION
In an ideal CSTR (i.e. an ideal steady state flow reactor) the contents in reactor are well mixed and have uniform composition throughout. Thus the exit stream has the same composition as the fluid within the reactor. This type of reactor is known as mixed flow reactor. This set-up is used to study a non-catalytic homogeneous second order liquid phase reaction under ambient condition.
The set up consists of two feed tanks through which two reactants are fed to the reactor. Rotameters are provided to measure the individual flow of Chemicals. The flow rate can be adjusted by operating the needle valves provided on respective Rotameter. The compressed air is used for circulation of feed. The CSTR is fitted with stirrer for proper mixing. From top outlet of it samples are collected for analysis. Pressure Regulator, Pressure Gauge and Safety Valve are fitted in the compressed air line.
EXPERIMENTATION:
To study the progress of a suitable Chemical Reaction CSTR.
To determine the Reaction Rate Constant.
UTILITY REQUIRED
Compressed Air Supply at 1 HP, 2 CFM.
Water Supply.
Drain.
Electricity Supply: 1 Phase, 220 V AC, 0.5 kW.
Instruments, Laboratory Glassware and Chemicals required for analysis as per the system adopted.
TECHNICAL DETAIL
Reactor Material Stainless Steel, Capacity 2 Ltrs (Approx).
Stirrer Stainless Steel Impeller and shaft coupled with FHP Motor.
Feed Tank (2Nos.) Material Stainless Steel, Capacity - 20 Ltrs.
Feed Circulation By compressed air.
Flow Measurement Rota meter 2Nos. (one each for Reactants).
Piping Stainless Steel and PVC.
Pressure Regulator 0-2 Kg/cm2
Pressure Gauge Bourdon type 0-2 Kg/cm2
Stop Watch Electronic
Control Panel comprises of Standard make on off switch, Mains Indicator etc.
Instruction Manual An ENGLISH instruction manual will be provided along with the Apparatus
The whole unit is assembled rigidly on a base plate and mounted on a stand.
Most of the parts are powder coated and rest are painted with auto paints.

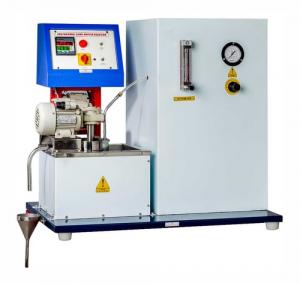

ISOTHERMAL CONTINUOUS STIRRED TANK REACTOR
DESCRIPTION:
In an ideal CSTR (i.e. an ideal steady state flow reactor) the contents in reactor are well mixed and have uniform composition throughout. Thus the exit stream has the same composition as the fluid within the reactor. This type of reactor is known as mixed flow reactor. This set-up is used to study a non-catalytic homogeneous second order liquid phase reaction under isothermal condition. The set up consists of two feed tanks through which two reactants are fed to the reactor. Rotameters are provided to measure the individual flow of Chemicals. The flow rate can be adjusted by operating the needle valves provided on respective Rotameter. The compressed air is used for circulation of feed. The CSTR is fitted with stirrer for proper mixing. From top outlet of it samples are collected for analysis. Constant temperature water bath arrangement is provided to conduct the experiment at various temperatures. Pressure Regulator, Pressure Gauge and Safety Valve are fitted in the compressed air line.
EXPERIMENTATION:
Saponification Reaction study in Isothermal CSTR.
To determine the Reaction Rate Constant and effect of temperature on it.
UTILITY REQUIRED
Compressed Air Supply at 2 Bar, 0.5 CFM.
Water Supply.
Drain.
Electricity Supply: 1 Phase, 220 V AC, 1.5 kW.
Instruments, Laboratory Glassware and Chemicals required for analysis as per the system adopted.
TECHNICAL DETAIL
Reactor Material Stainless Steel, Capacity 2 Ltrs. (Approx).
Water Bath Material Stainless Steel, Double wall, insulated with Ceramic Wool
Heater Nichrome wire Heater
Stirrer (2Nos.) Stainless Steel Impeller and shaft coupled with FHP motor. (One each for Water Bath and Reactor).
Feed Tank (2Nos.) Material Stainless Steel, Capacity - 20 Ltrs.
Feed Circulation By compressed air.
Flow Measurement     Rotameter - 2 Nos. one each for Reactants.
Piping Stainless Steel and PVC.
Pressure Regulator  0-2 Kg/cm2
Pressure Gauge Bourdon type 0-2 Kg/cm2
Stop Watch Electronic
Temp. Sensor RTD PT-100 type
Control panel comprises of
Digital Temp. Controller 0-199.9°C (For Hot Water Bath) With Standard make on/off switch, Mains Indicator etc.
Instruction Manual  An ENGLISH instruction manual will be provided  along with the Apparatus
The whole unit is assembled rigidly on a base plate and mounted on a stand.
Most of the parts are powder coated and rests are painted with auto paints.


PLUG FLOW REACTOR (STRAIGHT TUBE TYPE) MAKE : CREATIVE LAB MODEL NO: CLCRE:04
DESCRIPTION:
In an ideal Plug Flow Reactor (PFTR) there is no mixing in the direction of flow and complete mixing perpendicular to direction of flow. Concentration of reactants varies along the length of reactor but not in radial direction. This set-up is used to study a non-catalytic homogeneous reaction under ambient condition.
The set up consists of two feed tanks through which two reactants are fed to the reactor. Rotameters are provided to measure the individual flow of Chemicals. The flow rate can be adjusted by operating the needle valves provided on respective Rotameter. The compressed air is used for circulation of feed. A straight tube type reactor kept horizontally and inclined upward at outlet from where samples are collected for analysis. Pressure Regulator, Pressure Gauge and Safety Valve are fitted in the compressed air line.
EXPERIMENTATION:
Sponification Reaction Study in straight tube Plug Flow Reactor.
To determine Reaction Rate Constant.
UTILITY REQUIRED
Compressed Air Supply at 2 Bar, 0.5 CFM.
Water Supply.
Drain.
Instruments, Laboratory Glassware and Chemicals required for analysis as per the system adopted.
TECHNICAL DETAIL
Reactor Material Borosilicate Glass, OD-32mm, ID-25mm, Length-1200mm
Feed Tank (2Nos.) Material Stainless Steel, Capacity - 20 Ltrs.
Feed Circulation By compressed air.
Flow Measurement Rotameter 2 Nos. (One each for Reactants).
Piping  Stainless Steel and PVC
Pressure Regulator  0-2 Kg/cm2.
Pressure Gauge  Bourdon type 0-2 Kg/cm2.
Stop Watch  Electronic.
Instruction Manual  An ENGLISH instruction manual will be provided along  with the Apparatus
The whole unit is assembled rigidly on a base plate and mounted on a stand.
Most of the parts are powder coated and rest are painted with auto paints.



PLUG FLOW REACTOR (COLIED TUBE TYPE) MAKE : CREATIVE LAB MODEL NO:CLCRE:05
DESCRIPTION
In an ideal Plug Flow Reactor (PFTR) there is no mixing in the direction of flow and complete mixing perpendicular to direction of flow. Concentration of reactants varies along the length of reactor but not in radial direction. This set-up is used to study a non-catalytic homogeneous reaction under ambient condition. The set up consists of two feed tanks through which two reactants are fed to the reactor. Rotameters are provided to measure the individual flow of Chemicals. The flow rate can be adjusted by operating the needle valves provided on respective Rotameter. The compressed air is used for circulation of feed. Samples are collected for analysis from the outlet of reactor. Pressure Regulator, Pressure Gauge and Safety Valve are fitted in the compressed air line.
EXPERIMENTATION:
Sponification Reaction Study in straight tube Plug Flow Reactor.
To determine Reaction Rate Constant.
UTILITY REQUIRED:
Compressed Air Supply at 2 Bar, 0.5 CFM.
Water Supply.
Drain.
Instruments, Laboratory Glassware and Chemicals required for analysis as per the system adopted.
TECHNICAL DETAIL
 Reactor  Material Stainless Steel, OD-16mm, ID-13mm approx.
Feed Tank (2Nos.) Material Stainless Steel, Capacity - 20 Ltrs.
Feed Circulation  By compressed air.
Flow Measurement Rotameter 2 Nos. (one each for Reactants).
Piping Stainless Steel and PVC
Pressure Regulator 0-2 Kg/cm2.
Pressure Gauge Bourdon type 0-2 Kg/cm2.
Instruction Manual An ENGLISH instruction manual will be provided along with the Apparatus
The whole unit is assembled rigidly on a base plate and mounted on a stand.
Most of the parts are powder coated and rest are painted with auto paints.





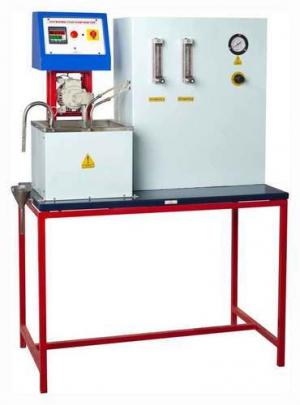

ISOTHERMAL PLUG FLOW REACTOR MAKE : CREATIVE LAB MODEL NO: CLCRE:06
DESCRIPTION:
In an ideal Plug Flow Reactor (PFTR) there is no mixing in the direction of flow and complete mixing perpendicular to direction of flow. Concentration of reactants varies along the length of reactor but not in radial direction. In case of a coil turbulence is introduced due to frequent change in direction of flow and presence of secondary flow, so a higher value of reaction rate constant is expected in coil tube type plug flow reactor. This set-up is used to study a non-catalytic homogeneous reaction under isothermal condition. The set up consists of two feed tanks through which two reactants are fed to the reactor. Rotameters are provided to measure the individual flow of Chemicals. The flow rate can be adjusted by operating the needle valves provided on respective Rotameter. The compressed air is used for circulation of feed. It is a helical coil tube type reactor kept in a constant temperature water bath to conduct the experiment at various temperatures. Reactants enter at lower end coming out of the top of coil from where samples are collected for analysis. Pressure Regulator, Pressure Gauge and Safety Valve are fitted in the compressed air line.
EXPERIMENTATION:
Sponification Reaction study in Isothermal Plug Flow Reactor.
To determine Reaction Rate Constant and effect of temperature on it.
UTILITY REQUIRED
Compressed Air Supply at 2 Bar, 0.5 CFM.
Water supply and drain.
Electricity-1.5kw, Single.
Instruments, Laboratory wares and Chemicals required for analysis as per the system adopted.
TECHNICAL DETAIL
Reactor Material Stainless Steel, Capacity 0.7 Ltrs. (approx) (Helical Coiled Tube Type)
Water Bath Material Stainless Steel, Double wall, insulated with CeramicWool.
Heater Nichrome wire Heater
Stirrer (Water Bath) Material SS Impeller and shaft coupled with FHP motor
Feed Tank (2Nos.) Capacity - 20 Ltrs.
Feed Circulation By compressed air.
Flow Measurement Rotameter 2Nos. one each for Reactants
Piping Stainless Steel and PVC.
Pressure Regulator 0-2 Kg/cm2
Pressure Gauge Bourdon type 0-2 Kg/cm2
Stop Watch  Electronic
Temp. Sensor RTD PT-100 type
Control panel comprises of Standard make on/off switch, Mains Indicator etc.
Digital Temp. Controller 0-200°C, RTD PT-100 type (For Water Bath)
Instruction Manual An ENGLISH instruction manual will be provided along with the Apparatus
The whole unit is assembled rigidly on a base plate and mounted on a stand.
Most of the parts are powder coated and rest are painted with auto paints.
