CNC WIRE CUT EDM MACHINE MAKE : CREATIVE LAB MODEL NO: CLPL-07
 TECHNICAL DETAIL
CNC Wire-cut EDM Machine intended to use for complex profile and thin wall cutting on various aerospace materials like Aluminum Alloys, Invar, Stainless Steels and Titanium Alloys etc. It would also cut Graphite, HSS, Carbide and CBN materials.
Table size (mm) : 510×730
Table travel(X/Y) (mm): 400×500
Max. cut thickness (mm) : 300
Travel size(U/V) (mm): (Normal):24×24 (Large taper):D- 60×60 E-130×130 T-240×240
Wire Dia. (mm): (Molybdenum wire) φ0.10~0.30
Wire speed (m/sec) : 12,9,7,5,2
Cutting speed (mm2/min): Standard: 120-140, max. cutting speed: 160-180
Max. cutting angle ±3°/100mm (15° & 30° is optional)
Process accuracy (mm): Multi-cut): 10×10×30(Square) 0.006; (Single cut)≤0.012 (Multi cut)(Octagon)≤0.009; (Straightness)≤0.006/50mm
Roughness(Ra.um): Multi-cut):Ra≤1.0 (Micro-pulse power Ra≤0.8) (Single cut):Ra≤2.0
Driving motor :Stepper motor / AC servo motor*(Optional)
Guide screw and track: Precision ball screw/Linear guide way
Tension system: Three stage(0/1/2)tension adjustable
flushing nozzle, D. M. Water (approx. 150 ltrs)
Power supply: 415V/50Hz, 2.5kw
Weight (Kg): 1700
Max Job Weight(Kg): 300
Dimension (mm): 1900×1450×1900
Standard Accessories – High Pressure coolant tank
DRO (X & Y Axis), Ceramic nozzle, Lifting motor for Z-Axis, Guider (Z axis), Steel Cover
SPANNER SET 6-17 1 SET.
2 . SPANNERS SIZE 30-32 1 SET.
ALLEN KEY SET(1.5MM-10MM) 1 SET.
4 . SCREW DRIVER 912 & 905 1 SET.
DIAL STAND M8 WITHOUT MAGNET 1 SET.
VERTICALITY BLOCK. 1 SET.
7.PLASTIC BOX FOR VERTICALITY BLOCK 1 SET.
UMBRELLA COMP 1 SET..
SPANNER 18*19. 1 SET.
CONTROLLER KEY 1 SET.
JOB CLAMP COMPLETE 1 SET.
PART PROGRAMMING SYSTEM SPECS.
System configuration for part programming system software for Job Master -Profit The System would be IBM COMPATIBLE with following minimum
Specifications: PENTIUM –IV processor with WINDOWS XP-PROFESSIONAL with 32 bit operating system
4 GB RAM
200 GB Hard Disk• 2 Serial Ports
CD Rom Drive
standard keyboard
Three button mouse• SVGA color monitor
Minimum 2 USB Port-2.0
Note: Anti-Virus Software would load on PC. N.B.: 1. additionally a CVT or UPS suitable for above selected configuration PC would be provided.

4 AXES CNC TIG WELDING MACHINE
SPECIAL FEATURES
Fully digitally regulated and bus controlled welding system guarantees 100 persent reproducible weld seams  TAC function: for quick and precise spot welds  Integrated pulsing as standard ensures a perfect seam Locking option prevents unauthorised operation Job mode: for efficient work Active Wave technology boosts cost efficiency  Whole system is totally digitised Power source, welding torches remote control units, PC tools.  Digital signal processor DSPregulates and controls the welding process.  Special program for aluminium: Automatic shaping of the cap on the pointed electrode tip for perfect root fusion. Materials Aluminium and its alloy Non-ferrous metals  Low and high alloy steels.
TECHNICAL DETAIL
Pulsed TIG welding machine
Welding power up to 10 KVA
Welding current 200- 400 A or higher
CNC movement volume 1000 mm X 1000 mm X 500 m
360-degree rotational axis
Velocity 0 - 400 mm/Sec Repeat Accuracy ± 0.5 mm
Automatic TIG torch
Automatic wire feeding
Water cooling system
Instruction manual will be provided along with the apparatus.

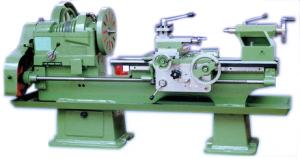

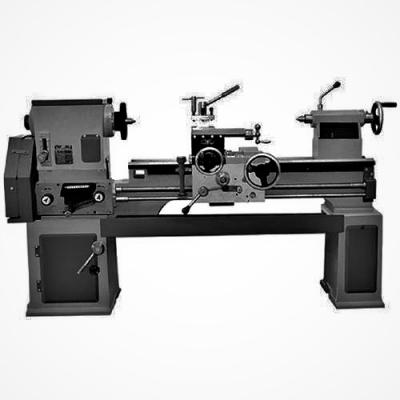

LATH MACHINE MAKE : CREATIVE LAB MODEL NO;CLPL-01
TECHNICAL DETAIL
BED LENGTH FT: 1371 MM
WIDTH OF BED:304 MM
 HEIGHT OF CENTRE: 250 MM
 SPINDLE BORE: 52 MM
 SWING IN GAP : 813 MM
 SWING OVER BED: 508 MM
 NO OF SPINDLE SP[EED : 6
 ADMIT BETWEEN CENTRE : 762 MM
 ELECTRIC MOTOR- 1 HP
 FOUR JAW CHUCK - 300 MM


CNC HORIZONTAL MILLING MACHINE MAKE: CREATIVE LAB MODEL: CLPL-04
TECHNICAL DETAIL
Capacity & Working Table
Longitudinal traverse (X) 650 mm
Vertical traverse (Y) 500 mm
Transverse traverse (Z) 500 mm
Pallet Size 500 x 400 mm
No. of pallet 2 Nos.
Workpiece size (dia x height) Ø 500 x Height-650 mm
Indexing Position 1° x 360 division
Safe working load on table 375 Kgs
Pallet Change 180 Deg. Swing type
Type of Drive of Index table Servo Driven
Automatic Tool Changer
No. of Tools Minimum 24 Nos.
Maximum Tool Dia With Adjacent Package Min 75 mm / Min 120 mm
Maximum Tool Length Minimum 250 mm
Maximum Tool Weight Minimum 7 Kg
Tool Change Time(T- T) 3 Sec
ACCURACY
Linear Axis
Positional uncertainty/
deviation for all linear axes 0.01
Repeatability for all linear axes  (Ps max) 0.006
Index Table
Positional uncertainty/ deviation 8 arc sec
Repeatability 6 arc sec
Spindle run out Within 0.005 mm at spindle nose and 0.015 (using mandrel) at 300 mm from spindle face
Feed drive- AC Servo drive
Cutting feed rate Minimum 15 m/min
 Rapid feed rate Minimum 35 m/min
Spindle
Spindle Taper BT-40
Spindle Speed Minimum RPM 6000
Spindle power ( Contd./Intermitent) 11 /15 Kw
Spindle Bearing- Inner Dia. 80 mm
C N C Control System
Siemens  simultaneous 3 axes CNC Control System, Ethernet feature/USB/ Flash card ports enable with all standard features or their latest applicable version with suitable technically justified standard features. Machine control system shall be capable of simultaneous interpolation of X,Y,Z axes
Standard Features
Roller Type Guide Ways for all linear axes
Precise ball screws for all linear axes
Electronic Counter Balance For The Vertical Axis
Automatic Centralize Lubrication System
AC Servo Drives For All Axes
Air Blast For Spindle Taper Clearing
Hydraulic Power Pack
Basic Coolant System With Scraper type Chip Conveyor & Chip Trolley
Lamella Covers On Linear Axes X & Y
Absolute Encoder Foe All Axes
10.4 inch  color LCD Display
Backlash & Pitch Error Compensation
Rigid Tapping & Retract Function
Simultaneous Interpolation Upto 3 Axes
Linear, Circular & Helical Interpolation
Polar Co-ordinate Programming
Machine Alarm Diagnosis
Energy Saving Function
3- tier signal tower lamp
Machine Lamp
Coolant Gun
Ring Coolant around the Spindle
Automatic Pallet Changer
Index Table 1° x 360 division
Front Gauge Panel
Accessories/equipment of the machine – one set each
Automatic centralized lubrication system
Oil skimmer
Visible window on operator side
Build in control Panel A/C
Voltage Stabilizer of Suitable capacity
Full door with sliding door interlock
Machine light
Coolant system for coolant supply including pump
Stub Arbor to suit m/c - 1 number
Collet Adaptor (ER 32) to suit m/c - 1 number
Collet Ø20 mm (ER 32) suitable to m/c


CNC HORIZANTAL MILLING MACHINE MAKE: CREATIVE LAB MODEL: CLPL-04 A
 TECHNICAL DETAIL
  • Capacity & Working Table
  • Longitudinal traverse (X) 650 mm
  • Vertical traverse (Y) 500 mm
  • Transverse traverse (Z) 500 mm
  • Pallet Size 500 x 400 mm
  • No. of pallet 2 Nos.
  • Workpiece size (dia x height) Ø 500 x Height-650 mm
  • Indexing Position 1° x 360 division
  • Safe working load on table 375 Kgs
  • Pallet Change 180 Deg. Swing type
  • Type of Drive of Index table Servo Driven
  • Automatic Tool Changer
  • No. of Tools Minimum 24 Nos.
  • Maximum Tool Dia With Adjacent Package Min 75 mm / Min 120 mm
  • Maximum Tool Length Minimum 250 mm
  • Maximum Tool Weight Minimum 7 Kg
  • Tool Change Time(T- T) 3 Sec
  •
ACCURACY
  • Linear Axis
  • Positional uncertainty/
  • deviation for all linear axes 0.01
  • Repeatability for all linear axes  (Ps max) 0.006
  • Index Table
  • Positional uncertainty/ deviation 8 arc sec
  • Repeatability 6 arc sec
  • Spindle run out Within 0.005 mm at spindle nose and 0.015 (using mandrel) at 300 mm from spindle face
  • Feed drive- AC Servo drive
  • Cutting feed rate Minimum 15 m/min
  •  Rapid feed rate Minimum 35 m/min
  • Spindle
  • Spindle Taper BT-40
  • Spindle Speed Minimum RPM 6000
  • Spindle power ( Contd./Intermitent) 11 /15 Kw
  • Spindle Bearing- Inner Dia. 80 mm
  • C N C Control System
  • Siemens  simultaneous 3 axes CNC Control System, Ethernet feature/USB/ Flash card ports enable with all standard features or their latest applicable version with suitable technically justified standard features. Machine control system shall be capable of simultaneous interpolation of X,Y,Z axes
  • Standard Features
  • Roller Type Guide Ways for all linear axes
  • Precise ball screws for all linear axes
  • Electronic Counter Balance For The Vertical Axis
  • Automatic Centralize Lubrication System
  • AC Servo Drives For All Axes
  • Air Blast For Spindle Taper Clearing
  • Hydraulic Power Pack
  • Basic Coolant System With Scraper type Chip Conveyor & Chip Trolley
  • Lamella Covers On Linear Axes X & Y
  • Absolute Encoder Foe All Axes
  • 10.4 inch  color LCD Display
  • Backlash & Pitch Error Compensation
  • Rigid Tapping & Retract Function
  • Simultaneous Interpolation Upto 3 Axes
  • Linear, Circular & Helical Interpolation
  • Polar Co-ordinate Programming
  • Machine Alarm Diagnosis
  • Energy Saving Function
  • 3- tier signal tower lamp
  • Machine Lamp
  • Coolant Gun
  • Ring Coolant around the Spindle
  • Automatic Pallet Changer
  • Index Table 1° x 360 division
  • Front Gauge Panel
  • Accessories/equipment of the machine – one set each
  • Automatic centralized lubrication system
  • Oil skimmer
  • Visible window on operator side
  • Build in control Panel A/C
  • Voltage Stabilizer of Suitable capacity
  • Full door with sliding door interlock
  • Machine light
  • Coolant system for coolant supply including pump
  • Stub Arbor to suit m/c - 1 number
  • Collet Adaptor (ER 32) to suit m/c - 1 number
  • Collet Ø20 mm (ER 32) suitable to m/c
