Description

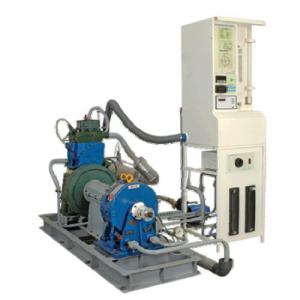

The setup consists of single cylinder, four stroke, VCR (Variable Compression Ratio) Electric start Diesel engine connected to eddy current type dynamometer for loading. The compression ratio can be changed without stopping the engine and without altering the combustion chamber geometry by specially designed tilting cylinder block arrangement. The setup consists of single cylinder, four stroke, VCR (Variable Compression Ratio) Electric start Diesel engine connected to eddy current type dynamometer for loading. The compression ratio can be changed without stopping the engine and without altering the combustion chamber geometry by specially designed tilting cylinder block arrangement.
FEATURES
No alteration in Combustion chamber geometry
Electric start with battery and charger
Arrangement for blend test .
EXPERIMENTS
Study of VCR engine performance
UTILITIES REQUIRED
ELECTRIC SUPPLY
230 +/- 10 VAC, 50 Hz, 1 phase
TECHNICAL DETAIL
VCR Engine test setup 1 cylinder, 4 stroke, Diesel Bore X Stroke-87..5 mm X 110 mm; Cubic Displacement-661 C.C; Rated Capacity-5 B.H.P. i A . 1500 RPM Compression Ratio Adjustable
Type eddy current
Air box M S fabricated with orifice meter and manometer
Fuel tank Capacity 15 lit with glass fuel metering column
Load indicator Digital, Range 0-50 Kg, Supply 230VAC
