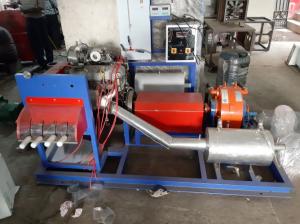

FOUR CYLINDER FOUR STROKE PETROL ENGINE TEST RIG MAKE : CREATIVE LAB MODEL NO:CLTD-04
DESCRIPTION:
IC engines are widely used in automobile, domestic and industrial sector. They are classified according to cycle, number of cylinders, arrangement of cylinders, fuel used, type of ignition, valve arrangement, cooling system. Test rigs are used to find out the performance of an IC engine. It consists of an IC Engine, dynamometer, fuel measuring, air intake measuring and various other arrangements
EXPERIMENTATION:
To determine Brake Power
To determine fuel consumption
To determine specific fuel consumption
To determine mechanical Efficiency
Utility required 
Electricity Supply: Single Phase, 220V AC, 50 Hz, 5-15 amp. Combined socket with earth connection.
 Water Supply: Continuous @5LPM at 1 Bar pressure.
Floor Drain required
Petrol : 5 liters
Exhaust Emission
Floor Area: 2m x 1 m
Techometer
Technical detail
Type of Engine Four cylinder Four stroke engine, vertical water cooled self start, petrol engine (Ambassador New Engine)
Type of Loading Rope Brake Dynamometer
Eddy Current Dynamometer
Hydraulic Break Dynamometer
Fuel Measuring System Fuel measuring system consists of a fuel tank, a burette and a three way cock arrangement.
Air intake Measuring System Air tank fitted with orifice and manometer.
Exhaust gas calorimeter  An Exhaust Gas Calorimeter, made of Stainless Steel will be provided for calculating heat carried away by exhaust gases.
The body of the calorimeter is insulated with ceramic wool  and cladded by Aluminum foil. DigitalTemperature indicator  with Temperature sensors at      appropriate position will be provided.
Temperature Measurement  Digital Temperature Indicator with multi-channel switch
Temperature Sensors  Thermocouple K-Type
Instruction Manual will be provided along with the Apparatus

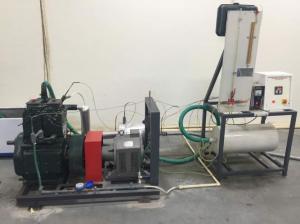

SINGLE CYLINDER FOUR STROKE DIESEL ENGINE TEST RIG MAKE : CREATIVE LAB MODEL NO:CLTD-06
DESCRIPTION:
 IC engines are widely used in automobile, domestic and industrial sector. They are classified according to cycle, number of cylinders, arrangement of cylinders, fuel used, and type of ignition, valve arrangement, cooling system. Test rigs are used to find out the performance of an IC engine. It consists of an IC Engine, dynamometer, fuel measuring, air intake measuring and various other arrangements.
 EXPERIMENTATION:
To determine Brake Power
To determine fuel consumption
To determine specific fuel consumption
To determine Brake Thermal Efficiency
UTILITY REQUIRED
Electricity Supply: Single Phase, 220V AC, 50 Hz, 5-15 amp. Combined socket with earth connection.
 Water Supply: Continuous @5LPM at 1 Bar pressure.
Floor Drain required
Diesel : 20 liters
Exhaust Emission
Floor Area: 3m x 2 m
Techometer
TECHNICAL DETAIL
Type of Engine Single cylinder, four strokes, vertical water cooled, crank start, diesel engine developing 5 HP at 1500. (Kirloskar New Engine)
Type of Loading Rope Brake Dynamometer
Eddy Current Dynamometer
Electrical Brake Dynamometer
Hydraulic Brake Dynamometer
Fuel Measuring System Fuel measuring system consists of a fuel tank, a burette and a three way cock arrangement.
Air intake Measuring System Air tank fitted with orifice and manometer.
Exhaust gas calorimeter An Exhaust Gas Calorimeter, made of Stainless Steel will be provided for calculating heat carried away by exhaust gases.
The body of the calorimeter is insulated with ceramic wool and cladded by Aluminum foil. Digital    Temperature indicator with Temperature sensors at           appropriate position will be provided.
Temperature Measurement Digital Temperature Indicator with multi-channel switch
Temperature Sensors Thermocouple K-Type.

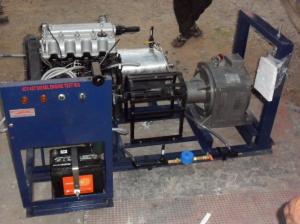

FOUR CYLINDER FOUR STROKE DIESEL ENGINE TEST RIG MAKE : CREATIVE LAB MODEL NO:CLTD-08
DESCRIPTION:
 IC engines are widely used in automobile, domestic and industrial sector. They are classified according to cycle, number of cylinders, arrangement of cylinders, fuel used, type of ignition, valve arrangement, cooling system. Test rigs are used to find out the performance of an IC engine. It consists of an IC Engine, dynamometer, fuel measuring, air intake measuring and various other arrangements
EXPERIMENTATION:
To determine Brake Power
To determine fuel consumption
To determine specific fuel consumption
To determine mechanical Efficiency
Utility required 
Electricity Supply: Single Phase, 220V AC, 50 Hz, 5-15 amps. Combined socket with earth connection.
 Water Supply: Continuous @5LPM at 1 bar pressure.
Floor Drain required
Petrol : 5 liters
Exhaust Emission
Floor Area: 2m x 1 m
Techometer
TECHNICAL DETAIL
Type of Engine Four cylinder Four stroke engine, vertical water cooled, self start, diesel engine (Ambassador New Engine).
Type of Loading Rope Brake Dynamometer
Eddy Current Dynamometer
Hydraulic Break Dynamometer
Fuel Measuring System Fuel measuring system consists of a fuel tank, a burette and a three way cock arrangement.
Air intake Measuring System Air tank fitted with orifice and manometer.
Exhaust gas calorimeter An Exhaust Gas Calorimeter, made of Stainless Steel will be  provided for calculating heat carried away by exhaust gases.
The body of the calorimeter is insulated with ceramic wool  and cladded by Aluminum foil. DigitalTemperature indicator with Temperature sensors at  appropriate position will be provided.
Temperature Measurement  Digital Temperature Indicator with multi-channel switch
Temperature Sensors  K-Type Thermocouple.

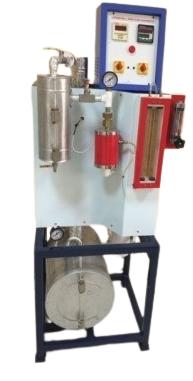

SEPARATING & THROTTLING CALORIMETER MAKE : CREATIVE LAB MODEL NO:CLTD-11
DESCRIPTION:
SEPARATING CALORIMETER: - It consists of two concentric chambers, the inner chamber and the outer chamber, which communicates with each other through an opening at the top. As the steam discharges through the metal basket, which has a large number of holes, the water particles due to their heavier momentum get separated from the steam and collect in the chamber. The comparatively dry steam in the inner chamber moves up and then down aging through the annular space between the two chambers and enters the Throttling Calorimeter.
THROTTLING CALORIMETER: - It consists a narrow throat (Orifice). Pressure and temperature are measured by pressure gauge and thermometer. The steam after throttling process passes through the heat exchanger and condensate is collected. Steam Generator is also provided to supply the saturated steam (Max.) at 2kg/cm2 pressure.
EXPERIMENTATION:
 To find the dryness fraction of steam.
Utility required
 Electric Supply: Single Phase, 220 V, 10 Amp.
 Continuous Water Supply: 10 LPM Approx. at ½ kg/cm2 pressure
Technical detail
 Separating Chamber: Compatible capacity made of Stainless Steel insulated with Ceramic wool with water level indicator.
 Throttling Chamber: Compatible capacity provided with gauge to measure inlet Pressure before throttling
 Heat Exchanger: For Condensing steam after throttling chamber
 Steam Generator: Compatible capacity with digital temperature controller to control the temperature inside the steam generator.
 Differential pressure: By manometer Measurement
 Steam pressure measurement: By Pressure gauge
 The whole set-up is well designed and arranged on a rigid structure painted with industrial PU Paint.

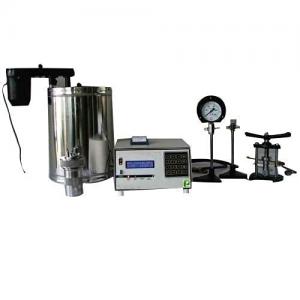

BOMB CALORIMETER MAKE : CREATIVE LAB MODEL NO:CLTD-13
TECHNICAL DETAIL:
Bomb Calorimeter with Digital Differential Temperature (DDT) / Firing Unit (FU) for an accurate
method for determination of Heat of Combustion, Calorific Values & Sulphur contents of solid and liquid fuels.
The Digital Differential Temperature / Firing Unit with Electronic Timer Beep is having following
features:
a. Temperature Indication: - 3 % Digit - Digital Display
b. Reading Accuracy of Temperature:-0.1deg C
c. Firing Voltage :-12 V AC
Stainless Steel fabricated Combustion Bomb
Outer jacket made up of S.S. with highly insulated material
Bomb, oxygen, cylinder, wt. box, pressure crucible, digital temp. Indicator
