UNSYMMETRICAL BENDING APPARATUS MAKE:CREATIVE LAB MODEL NO:-CLSL-12

 DESCRIPTION
Apparatus consists of a mild steel angle of size 1" X 1" X 1/8" or an equivalent metric units of length 80 cm is tied as a cantilever beam. The beam should be fixed at one end such that the rotation of 45degree intervals are given and clamped such that the principal axis of its cross-section may be inclined at any angle with the horizontal and vertical planes. Also arrangement will be provided to apply vertical load at the free end of the cantilever and to measure horizontal and vertical deflection of the free end. A dial gauge with 25mm travel (with magnetic base) will be supplied with the apparatus. Apparatus will be supplied complete with a supporting stand and a set of weights





BENDING MOMENT AND SHEAR FORCE APPARATUS MAKE : CREATIVE LAB MODEL NO:CLSL-14
DESCRIPTION

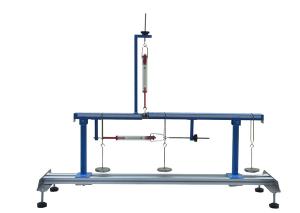

This demonstration unit facilitates the experimental investigation of the progression of the bending moment and shearing forces on a bar subject to point loads. In addition, the section principle commonly used in mechanics can be demonstrated. Due to the use of a low friction joint with two degrees of freedom at 1/3 of the span and two dynamometers, the measurements can be recorded directly from the bar. The deflection of the bar as result of the travel of the dynamometers and the horizontal alignment can be compensated and regulated using two adjustment bolts. The bar is loaded with graduated sets of weights that can be attached at any point on the bar
