Flexure Testing Machine Electrically Operated, Material of Construction:
Weight of the Load Frame: Min. 130kg
Hydraulic System: With Min. 15 liters, hydraulic oil feed and fuel pump separately, 0.5 hp, 1 Ph, 220V AC motor driven two-speed hydraulic pump.Standard confirm to:- Conforms to IS 516 and IS : 14858, Machines conforming to ASTM C39.
Universal Automatic Compacter
Universal Automatic Compactor with Mild Steel compaction mould as per IS
Ref Standard IS:2720 (Part 7 & 8) Motor driven mechanical compactor,useful for soil compaction in 100 mm or 150 mm dia moulds.
Rammer - Circular faced 50mm dia adjustable to 2.6kg or 4.9kg weight.
Drop - Adjustable to 310mm or 450mm.
The equipment is suitable for operation on 220 V, 50 Hz, Single Phase, AC supply.

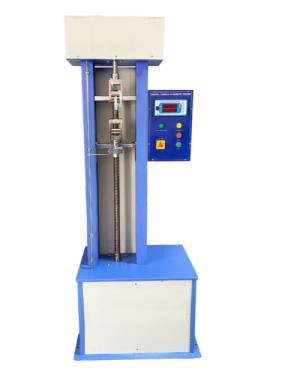

Cement Tensile Testing Machine
Testing Machine: Ref. standard - EN-196-1
Loading speed of the double lever system: 50 +/- 10 N/Sec, Flexure jaw diameter of the loading roller: 10mm
Supporting roller diameter: min. 10mm
Baffle plate span: 46mm
Digital Compression Testing Machine
Digital Compression Testing Machine: Capacity Min: 2000kN with touch screen display with TFT with Min. 800 X 480 Pixel. Real time display of time Vs Load in Kn/Mpa. Least count:- Min. 0.1KN, Maximum Clearance Between Platens:-370mm; Maximum Distance Between Side Plates:-340mm; Platen Size:-Min. 222.0 Dia, Piston Dia:-Min. 222.2mm Piston Stroke:-50mm; Hydraulic System: With 15 liters. Control System:- Microprocessor based, pace rate control option must be incorporated through lever. Auto shut down facility. Should consist of parfex glass fixed safety door on the front and back. Calibration & validation:- machine must be with NCCBM/NABL calibration certificated with traceability certificate. Digital Indicator has provision to configure more than one Mode. Mode1-Compression/Mode2-Flexure/Mode3- Prism Testing/Mode4-Tensile Splitting strength. Communication with software support. Machine should supplied with followings:- 1)Loading Unit consisting of Loading Frame with Jack, Dust Cover &Upper Platen. 2) Pumping Unit 3)E.D.I- Touch Screen 4)Spacer with Locating Pin:-4 Nos 5) Step Pin with
Ring:- 1 No 6) Flexible Hose Pipe:- 1 No 7) Hydraulic Oil:- 15 Ltrs 8) Lifting Handle
for Ram:- 1 No 9) Spanner 24 x 27:- 2Nos .10) Allen Key 3mm:- 1 No 11)Main cable for
EDI:- 1No 12) Control motor cable:- 1 No .13)Eye Hook:- 1 No .14) Dust Cover:- 1 No 15) Calibration Certificate- 1 No 16)Operating Manual:- 1 No
Sieves
Test Sieve, 18” dia G.I. Frame, size 100, 80, 63, 50, 40, 31.5, 25, 20, 12.5, 10 & 4.75, 2, 1mm & 600 , 425, 300, 212, 150, 75 micron
with lid & pan
