MAKE: CREATIVE LAB
MODEL NO:-CLHT-11
DESCRIPTION:

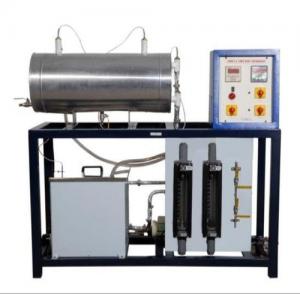

Shell and Tube Heat Exchanger are popular in process industries because they occupy less space and offer reasonable temperature drop. The apparatus consists of fabricated shell, inside which tubes with baffles on outer side are fitted. The present set up is a 1-2 heat exchangers, with cold water flows through shell. Valves are provided to control the flow rates of hot and cold water. Flow rates of hot and cold water are measured using Rotameters. A magnetic drive pump is used to circulate the hot water from a re-cycled type water tank, which is fitted with heater and Digital Temperature Controller.
EXPERIMENTATION:
The main object of the experimental setup is to study the following at various flow rates:
LMTD
Heat transfer rate
Overall Heat Transfer Co-efficient.
UTILITIES REQUIRED
Water supply 20 lit/min (approx.) and drain.
Electricity Supply: 1 Phase, 220 V AC, 4 kW.
Floor area of 1.5 m x 0.75 m.
TECHNICAL DETAILS
System: Water to Water. (1 – 2 shell & tube type)
Shell: Material Stainless steel. Insulated with ceramic wool and cladded with aluminum foil.
Dia. 220 mm, Length 500 mm (Approx.) 25% cut baffles at 100 mm distance 4 Nos.
Tube : OD 16mm approx., Length 500mm (24 Nos.)
Water Flow Measurement Rota meters (2Nos.) one each for cold & hot fluid.
Hot Water Tank Made of Stainless steel Insulated with ceramic fibre wool.
Hot Water Circulation : Magnetic Pump
Heater: Nichrome wire heater.
Control panel comprising of:
Digital Temp. Controller: 0-199.90C, (For Hot Water Tank)
Digital Temp. Indicator: 0-199.90C, with multi-channel switch
Temperature sensors: RTD PT-100 type.
With Standard make On/Off switch, Mains Indicator etc.
Instruction Manual : An ENGLISH instruction manual will be provided along with the Apparatus A good quality painted rigid MS Structure is provided to support all the parts
|
