WHIRLING OF SHAFT DEMONSTRATOR

DESCRIPTION:

The set up is designed to study the whirling of shafts. The set-up consists of a sturdy frame, bearing holders, variable speed motor etc. to drive the shaft along with speed control unit. Different bearing can be fitted in bearing block to have different end conditions i.e. (i) both end fixed, (ii) one end free and one end fixed etc. As the test is destructive, hence the shaft can not be used again.

EXPERIMENTATION:

Display of various modes of whirl for a shaft with

Both ends directionally fixed.

One ends fixed and other free

Both ends directionally free.

Modes of vibrations can be studied and frequency can be measured in each case.

UTILITIES REQUIRED

Floor area of 2m x 0.5 m.

Electricity Supply 230 V AC, Single Phase, 0.5 kW.

Digital Tachometer

TECHNICAL DETAILS

Test Shafts

Length 1000 mm each.

Diameter 3.2, 4.8 & 6.4 mm (approx.)

Quantity Two each.

Kinematic coupling bearing for fixed or free ends without restraint.

Drive motor, 5000 rpm, FHP.

Supplied with a speed control unit.

Instruction Manual An ENGLISH instruction manual will be provided along with the Apparatus

MUFFLE FURNACE

TECHNICAL DETAIL

Outer cover made of double walled CRCA sheet, duly epoxy powder coated.

Working temperature up to 1100 oC max. design for max. over shoot temperature up to 1200 oC. soaking time for continues working temp. 1100 oC, max. 8 hours.

Sensor provided will be CHROMEL / ALUMEL Thermocouple, with High temperature ceramic sheathed and back side mounting facility.

Control panel provided at Top of the Muffle furnace with sufficient gap for air pass through & no direct contact of outer body of Muffle furnace with the control panel.

High temperature Muffle Furnace manufactured & designed to work up to 1100 oC, as mention features,

Furnace operating temperature 1200 oC max., with continuous sock time operation 4-6 hrs., at 1100 oC.

Temperature Controller PID Profile with 4 ramp & 4 Soak step control logic.

Control logic with SSR control power pack & PID temperature controller.

Temperature accuracy ± 5 oC. at max. operating temperature.

Furnace heating element is Kanthal A-1 wire wounded over the Muffle for uniform heating.

Uniform heating of 2 kW. capacity. Current rating 8A,

Working Chamber Dimension (Muffle Dimension):100 (W) x 100 (H) x 230 (D) mm.

Over all Dimension approximately 350 (W) x 350 (H) x 450(D) mm ( approx)

STATIC & DYNAMIC BALANCING DEMONSTRATOR MAKE : CREATIVE LAB MODEL NO:CLTOM-04

DESCRIPTION:

This equipment is designed for carrying out the experiment for balancing a rotation mass system. The apparatus consists of a stainless steel shaft fixed in a rectangular frame. A set of four blocks with a clamping arrangement is provided. For static balancing, each block is individually clamped on shaft. For dynamic balancing, a moment polygon is drawn using relative weights and angular and axial position of blocks is determined. The block are clamped on shaft is rotated by a motor to check dynamic balance of the system. The system is provided with angular scale and is suspended with chains for dynamic balancing.

EXPERIMENTATION:

To balance the masses statically and dynamically of a single rotating mass system.

To observation of effect of unbalance in a rotating mass system.

UTILITIES REQUIRED

Electricity Supply : 220 V AC, Single Phase, 0.5 kW with earth

Floor Area 0.5m x 0.5m

Digital Tachometer

TECHNICAL DETAILS

Drive Motor FHP Motor, variable speed, with speed controller.

Balancing weight 4 Nos. of Stainless Steel with different sized eccentric mass for varying unbalance.

Rotating Shaft Material Stainless Steel

Instruction Manual An ENGLISH instruction manual will be provided along With the Apparatus.

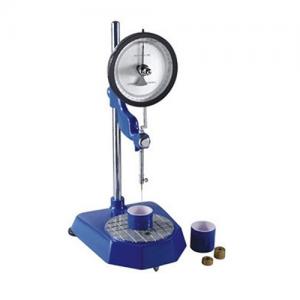

STANDARD PENETROMETER

Description:

Used to determine grade of bitumen. The penetration tests determine consistency of bitumen for the purpose of grading. Depth in units 1/10 of millimeter to which a standard needle having a standard weight 0 will penetrate vertically in a duration of five seconds at a temperature of 25 C determines penetration for gradation.

Specification:

It consists of a vertical pillar mounted on a base provided with leveling screws.

The head, together with dial plunger rod and cone (or needle) slides on a pillar and can be clamped at any desired height.

A rack and pinion and pointer assemble provides fine adjustment of needle or cone tip to sample. It incorporates a clutch mechanism which makes reading of penetration and subsequent resetting a simple and accurate operation.

The dial is graduated in 400 1/10 and the millimeter subdivisions and the needle pointer against figures makes easy reading. Supplied with a bitumen penetration needle, ring weight one each 50gms and two sample containers.

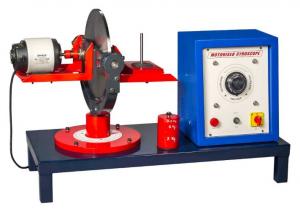

MOTORIZED GYROSCOPE APPARATUS MAKE : CREATIVE LAB MODEL NO: CLTOM-05

DESCRIPTION:

The set up consists of stainless steel disc mounted on a horizontal shaft, rotated by a variable speed motor. The rotor shaft is coupled to a motor mounted on a trunion frame having bearings in a yoke frame, which is free to rotate about vertical axis. A weight pan on other side of disc balances the weight of motor. Rotor disc can be move about three axis. Torque can be applied by calculating the weight and distance of weight from the centre of rotor. The gyroscopic couple can be determined.

EXPERIMENTATION:

Experimental justification of the equation T = I. . p. for calculating the gyroscopic couple by observation and measurement of results for independent vibrations in applied couple T and precession p.

To study the gyroscopic effect of a rotating disc.

UTILITIES REQUIRED

Electricity Supply : 230 V AC, Single Phase, 0.5 kW

Bench area : 1m x 1m

Digital Tachometer

TECHNICAL DETAILS:

Disc : Material Stainless Steel, Dia 300 mm x 10 mm thick precisely balanced which can be rotated in 3 mutually perpendicular axis.

Motor Variable speed of standard make.

Supplied with Speed Control Unit.

Weights2 kg, 1 kg, 500 gms.

Stop Watch Electronic

Accurately marked scale & pointer to measure precession rate.

Instruction Manual : An ENGLISH instruction manual will be provided along

With the Apparatus.
