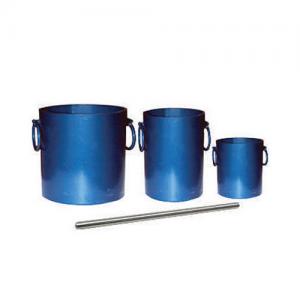

CYLINDRICAL MEASURES

Description:

It is used to determine bulk density or unit weights of aggregates.

Specification:

Cylindrical measures of sheet iron with handles. Consists of 3 measures one each 3 liters capacity, 15 liters capacity and 30 liters capacity. Complete with one tamping rod, round, 16mm dia. and 600mm long, one end rounded.

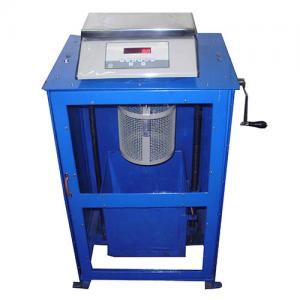

SPECIFIC GRAVITY AND WATER ABSORPTION OF AGGREGATES

Description:

This set is used for specific gravity, apparent specific gravity and water absorption of aggregates.

Specifications:

The outfit comprises of- 1No. Semi-self indicating balance, capacity 5 kg, accuracy 0.5gm, provision is made in this balance to suspend density basket under material pan. Balance is supplied with necessary set of weights.

This balance is mounted on an angle iron frame stand. 1 No. Density Basket. 1 No. Air tight container of capacity similar to that of density basket 1 No. Water tight container to suspend density basket. 1 No. G.I. Tray of area not less that 650cm sq. 2 Nos. Absorbent clothes 75cm x 45cm.

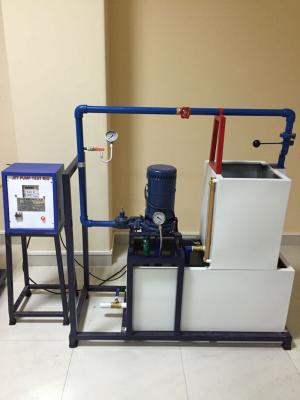

JET PUMP TEST RIG MAKE : CREATIVE LAB MODEL NO:-CLFM-47

DESCRIPTION:

The present Jet Pump Test Rig is a self-contained unit operated on closed circuit basis containing a sump tank. The set-up consists of a monoblock Jet Pump. Flow of fluid is measured by using measuring tank and stop watch. Vacuum gauge is fitted on suction line and Pressure gauge is fitted on delivery line to measure the pressure.

EXPERIMENTATION:

To determine total head, pump output, overall efficiency and pump efficiency of the Jet pump.

To plot Graph

Head vs Discharge

Pump efficiency vs Discharge

Pump HP vs Discharge.

UTILITIES REQUIRED :

Electricity Supply: Single Phase, 220 VAC, 50 Hz, 5-15 amp combined socket with earth connection.

Water Supply (Initial Fill).

Floor Drain required.

Floor Area Required: 1.5m x 0.75m

TECHNICAL DETAILS :

Pump : Monoblock jet pump of size 32mm x 25m x25mm

Capacity 1 HP.

Medium Flow : Clear Water.

Sump Tank : Capacity 100 Ltrs.

Flow Measurement : Using Measuring Tank (Capacity 70 Ltrs.) & Electronic Stop watch

Pressure Gauge : Bourdon type.

Control Panel Comprises of :Energy measurement : Energy meter Electronic, L&T make.

MCB : For overload protection. Standard make On/Off Switch, Mains Indicator, etc.

Instruction Manual: An ENGLISH instruction manual will be provided along with the Apparatus Tanks will be made of Stainless Steel.

The whole set-up is well designed and arranged in a good quality painted structure.

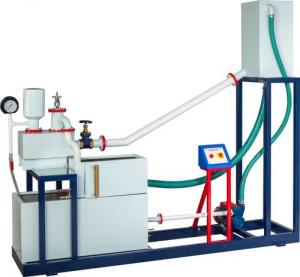

HYDRAULIC RAM TEST RIG MAKE : CREATIVE LAB MODEL NO:CLFM-40

DESCRIPTION:

Hydraulic Ram is used for pumping small quantity of water at high head, when large quantity of water at small head is available. It operates on the principle that if flowing water is suddenly brought to rest in a long pipe, a phenomena known as water hammer occurs, wherein a pressure wave travels along the pipe. This principle is

used in the Hydraulic Ram to pump water. The set-up consists of a box incorporating pulse and non-return valves and a supply reservoir on a stand which is fed by the overhead tank. An air vessel above the valve chamber smoothes cyclic fluctuations from the Ram delivery. Different pressure may be applied to the pulse valve to change the closing pressure and hence the operating characteristic.

EXPERIMENTATION:

To find out discharge of useful water and waste water.

To find out the efficiency of the Hydraulic ram.

UTILITIES REQUIRED:

Electricity supply: Single Phase, 220 V AC, 50 Hz, 5-15 amp combined socket with earth connection.

Water Supply (Initial Fill)

Floor Drain required.

Floor Area Required: 1.5 m x 0.75 m

TECHNICAL DETAILS:

Ram : Supply Head 1.0 m, Delivery Head 4 m (Max.)

Water Circulation : FHP Pump, Crompton make.

Sump Tank : Capacity 140 Ltrs. (approx.)

Overhead Tank : Capacity 50 Ltrs. (approx.)

Air Vessel : Suitable Capacity.

Flow Measurement : Using Measuring Tank & Electronic Stop Watch for waste water and for useful water

Pressure Gauge : Bourdon type.

Control Panel Comprises of : Standard make On/Off Switch, Mains Indicator, etc.

Instruction Manual : An ENGLISH instruction manual will be provided along with the Apparatus Tanks will be made of Stainless Steel.

The whole set-up is well designed and arranged in a good quality painted structure.

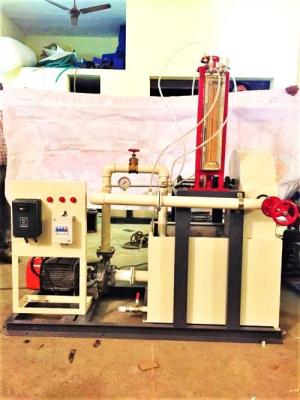

PELTON TURBINE TEST RIG

MAKE : CREATIVE LAB
MODEL NO:-CLFM:-48
DESCRIPTION:

Pelton Wheel Turbine is only impulse water turbine now in common use named in honour of Sir L. A. Pelton (1829-1908) of California, USA. It is a tangential flow impulse turbine. The water strikes the buckets along the tangent of the runner. The energy available at the inlet of the turbine is only kinetic energy. The pressure at the inlet and outlet of the turbine is atmospheric. This turbine is used for high heads. The present set-up consists of a runner. The buckets are mounted on the runner. The water is fed to the turbine, through SS nozzle with a SS spear, by means of Centrifugal Pump, tangentially to the runner. Flow of water into turbine is regulated by adjusting the spear position by the help of a given hand wheel. The runner is directly mounted on one end of a central SS shaft and other end is connected to a brake arrangement. The circular window of the turbine casing is provided with a transparent acrylic sheet for observation of flow on to the buckets. This runner assembly is supported by rigid MS structure. Load is applied to the turbine with the help of this brake dynamometer so that the efficiency of the turbine can be calculated. Pressure gauge is fitted at the inlet of the turbine to measure the total supply head to the turbine.

EXPERIMENTATION:

To study the operation of a Pelton Wheel Turbine.

To determine the Output Power of Pelton Wheel Turbine.

To determine the Turbine Efficiency.

UTILITIES REQUIRED

Water Supply and Drain.

Electricity 5 kW, 440V AC, Three Phases.

Floor Area 1.5 x 0.75 m

TECHNICAL DETAILS:

Output Power: 1 kW.

Discharge: 400 LPM (Approx.)

Supply Head: 25 m

Speed: 1000 RPM (Approx.)

Nozzle: Material Stainless Steel.

Spear: Material Stainless Steel.

Dynamometer: Rope Brake type.

Sump Tank: Capacity 200 Ltrs.

Water Circulation: Centrifugal Pump, Standard make, Capacity 5 HP,

Three Phase, 2800 RPM

Discharge Measurement: Pitot tube with Manometer

Control Panel Comprises of:

L&T make Starter, Mains Indicator, and MCB for overload protection.

Instruction Manual: An ENGLISH instruction manual will be provided along

With the Apparatus Tanks will be made of Stainless Steel.

The whole set-up is well designed and arranged in a good quality painted structur
