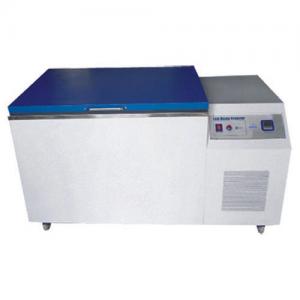

DEEP FREEZER

Description:

The Deep Freezers are widely used in medical laboratories and for industrial purposes to store chemicals, bloods, tissue cultures, and other medical samples that can only be stored and preserved in low temperature range.

LOSSES DUE TO FRICTION IN PIPE LINES ACCESSORIES

DESCRIPTION:

The setup consists of 2 pipes of different dia, which are connected in parallel. Pressure tapings are provided on each pipe to measure the pressure losses with the help of a Differential Manometer. Control valves are fitted on each pipe, which enables to use one pipe at a time for experiment. The set-up can be connected to Hydraulic Bench by flexible pipeline.

EXPERIMENTATION:

To determine the losses due to friction in pipes.

To determine the friction factor for Darcy-weirback equation.

UTILITIES REQUIRED :

Hydraulic Bench

TECHNICAL DETAILS:

Pipes (2 Nos.) : Material GI of ½” & 1” diameter.

Pipe Test Section : Length 1 m.

Instruction Manual : An ENGLISH instruction manual will be provided along

with the Apparatus

The whole set-up is well designed and arranged in a good quality painted structure.

LOSSES IN PIPE FITTINGS, SUDDEN ENLARGEMENT & CONTRACTION ACCESSORIES

DESCRIPTION :

The set up consists of a 1/2 bend and elbow, a sudden expansion & sudden contraction fitting from 15mm to 25mm, ball valve and gate valve. Pressure tapings are provided at inlet and outlet of these fittings under test. A differential manometer fitted in the line gives pressure loss of individual fittings. The set-up can be connected to Hydraulic Bench by flexible pipe line.

EXPERIMENTATION:

To determine loss of head in the fittings at various water flow rates.

To determine the loss co-efficient for the pipe fittings.

Comparing the Pressure drop across each device.

UTILITIES REQUIRED :

Hydraulic Bench

TECHNICAL DETAILS :

Sudden Enlargement : From 15mm to 25mm

Sudden Contraction : From 25mm to 15mm.

Bend : 1/2 “

Elbow : 1/2 “

Ball valve : 1/2 “

Gate valve : 1/2 “

Instruction Manual : An ENGLISH instruction manual will be provided along

with the Apparatus

The whole set-up is well designed and arranged in a good quality painted structure

HYDRAULIC BENCH

MAKE : CREATIVE LAB
MODEL NO:CLFM-29

DESCRIPTION :

The setup consists of a two sided clear fabrication section. Water is fed through a nozzle and discharged vertically to strike a target carried on a stem which extends through the cover. A weight carrier is mounted on the upper end of the stem. The dead weight of the moving parts is counter balanced by a compression spring. The vertical force exerted on the target plate is measured by adding the weights supplied to the weight pan until the mark on the weight pan corresponds with the level gauge. A total of two targets are provided, a flat plate and a hemispherical cup.

EXPERIMENTATION:

To measure the force developed by a jet of water impinging upon a stationary object and comparison

with the forces predicted by the momentum theory.

TECHNICAL DETAILS :

Hydraulic Bench

Test Plates : Material Brass (2 Nos.)

1. Flat Plate

2. Hemispherical Cup

Nozzle : Material Brass

Stainless Steel enclosure : Having of opposite sides made of glass.

Instruction Manual : An ENGLISH instruction manual will be provided along

with the Apparatus

The whole set-up is well designed and arranged in a good quality painted structure.

TRIAXIAL SHEAR TEST APPARATUS

DESCRIPTION

Multi rate of strain.

Designed to accommodate Universal Triaxial Cell for testing soil

Specimens up to 100 mm in diameter. A turret type motor drive

gear unit to give 30 different rates of strain ranging from 6 mm/min down to 0.00048 mm/min

The motor and gear box assembly are housed in an elegant free

standing console and electrical controls have been provided on the

front panel of the load frame. Suitable for operation on 220V, 50

Hz, Single phase supply. HS28.05 Triaxial Cell

For 38mm diameter x 76 mm high specimen 50 mm diameter x 100 mm high specimen

Suitable for lateral pressure up to 1000 kpa, the cell has four take off positions drilled in the base for cell pressure, pore water pressure, and for top and bottom drainage.Fitted with 3 no-volume change valves and one dead end plug.

Cell is supplied complete with one loading pad, two porous stones, one sheath stretcher, one split sand former, 10 latex rubber sheaths and four sealing rings for 38 & 50 mm dia

samples

HS28.118 Pneumatic Control Panel, 2 lines

The unit have precision pressure regulators for controlling confining

Pressure, backpressure. Capacity: 10.5 kg/sq cm. complete with Mechanical volume change Appts.

HS30.230 Proving Ring 10 kN capacity

HS29.15 Dial gauge 0.01 X 25mm
