MAKE : CREATIVE LAB
MODEL NO: CLFM-26
Description:

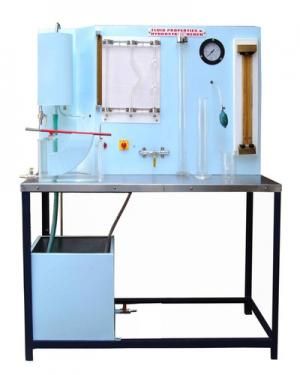

The Properties of Fluids and Hydrostatics Bench are designed to demonstrate the properties of fluids and their behavior under hydrostatic conditions (fluid at rest). This allows students to develop an understanding and knowledge of a wide range of fundamental principles and techniques, before studying fluids in motion. A variety of measuring devices is incorporated, either fastened to the back of the bench or freestanding. Water is stored in a stainless steel tank situated at the base of the unit. The water can be transferred by centrifugal pump, either to an elevated open storage tank connected to a number of glass tubes for free surface studies.
Experimentation:
Universal hydrometer and hydrometer jars
Falling sphere viscometers free surface tubes
Bourdon gauge
U-tube manometer
Hydrostatic pressure apparatus
Capillary tube apparatus
Metacentric height apparatus
Utilities Required:
Electricity supply: Single Phase, 220 V AC, 50 Hz, 5-15 amp combined socket with earth connection. Earth voltage should be less than 5 volts.
Water Supply: Initial Fill
Floor Drain.
Floor Area: 1.75 m x 1.75 m.
Technical Details:
Universal Hydrometer : Range 0.70 to 2.00 sub-divided in 0.01 intervals
Falling Sphere Viscometer : 40mm tube diameter
Hydrostatic Pressure Apparatus : Comprises counter-balanced precision quadrant. Pivoted on knife edges at its centre of arc.
Thermometer : Range -1000C to +5000C
Tanks will be made of Stainless Steel.
An ENGLISH instruction manual consisting of experimental procedures, block diagram etc. will be provided along with the Apparatus
The whole set-up is well designed and arranged on a rigid structure painted with industrial PU Paint.
|
