MAKE :CREATIVE LAB
MODEL NO:-CLFM-24
DESCRIPTION :

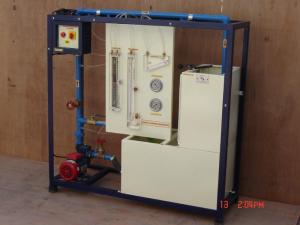

The set-up consists of different pressure measurement devices fitted in a pipe line, in which an Orifice is fitted to create the pressure difference. Present set-up is self-contained water re-circulating unit, provided with a sump tank and a centrifugal pump etc. Flow control valve and by-pass valve are fitted in water line.
EXPERIMENTATION:
To demonstrate the working of different pressure measuring devices.
To measure the pressure and pressure difference by pressure gauge, single column manometer, UTube manometer & Inclined tube manometer.
UTILITIES REQUIRED :
Electricity Supply: Single phase, 220 VAC, 50 Hz, 5-15 amp. Combined socket with earth
connection.
Water Supply (Initial fill)
Floor Drain required.
Floor Area Required: 1.5 m x 0.75 m
Mercury (Hg) for manometer (750 gm).
TECHNICAL DETAILS:
Single Well Manometer: Single Tube Type.
Differential Manometer: U Tube Type.
Sensitive Manometer. : Inclined Tube Type
Pressure Gauge. : Bourdon Type
Water Circulation: FHP Pump, Champion makes.
Sump Tank: Capacity 60 Ltrs.
Control Panel Comprises of:
Standard make On/Off Switch, Mains Indicator, etc.
Instruction Manual: An ENGLISH instruction manual will be provided along
With the Apparatus Tanks will be made of Stainless Steel.
The whole set-up is well designed and arranged in a good quality painted structure.
|
