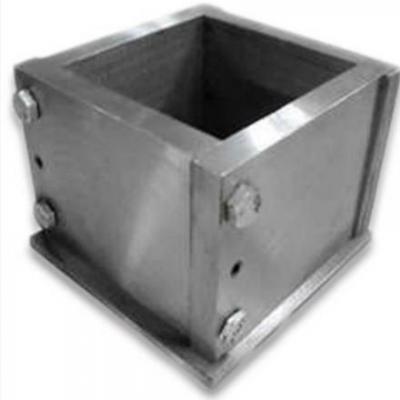

CEMENT MORTAR MOULDS

DESCRIPTION
Cement Mortar Mould, Steel, for 70.6mm cube with ISI certification mark, IS:10086, machined with a permissible variation of 0.15mm and finished within tolerances of +0.15mm - 0.10mm

CYLINDRICAL MOULDS

Description
Cast Iron, Split Lengthwise 150mm dia x 300mm high with base plate and top plate

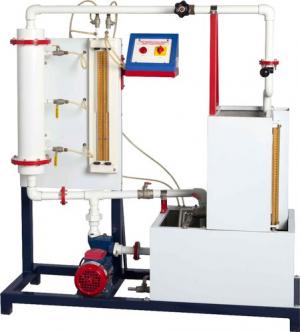

DARCY LAW APPARATUS

MAKE :CREATIVE LAB
MODEL NO:CLFM-23

DESCRIPTION :

The set-up consists of a cylindrical test section filled with pourous medium. Pressure tappings are provided in the test section to measure the pressure drop with the help of differential manometer. Present set-up is self-contained water re-circulating unit, provided with a sump tank and a centrifugal pump etc. Flow control valve and bypass valve are fitted in water line to conduct the experiment on different flow rates. Flow rate of water is measured with the help of measuring tank and stop watch.

EXPERIMENTATION:

To verify Darcy’s law.

To find out the coefficient of permeability of a given medium.

UTILITIES REQUIRED :

Electricity Supply: Single Phase, 220V AC, 50Hz, 5-15 amp combined socket with earth connection.

Water Supply (Initial Fill).

Floor Drain required.

Floor Area required: 1.5 m x 0.75 m

Mercury (Hg) for manometer (250 gm)

TECHNICAL DETAILS :

Test Section : Material Stainless Steel Dia 120 mm approx., Height 500 mm.

Water Circulation: FHP Pump, Crompton make.

Flow Measurement : Using Measuring Tank (Capacity 25 Ltrs. (approx.) and Electronic Stop Watch

Sump Tank : Capacity 50 Ltrs.

Control Panel Comprises of : Standard make On/Off Switches/Starter, Mains Indicator etc.

Instruction Manual : An ENGLISH instruction manual will be provided along with the Apparatus Tanks will be made of Stainless Steel.

The whole set-up is well designed and arranged in a good quality painted structure.

MULTISPEED TESTER, MARSHAL HAMMER, MOULDS, TESTING JIG

DESCRIPTION

Standards - ASTMD1559 BS:598-197, EN-12697-34 Measurement of the resistance to plastic flow of cylindrical specimens of bituminous paving mixture loaded on the lateral surface. The machine can provide measurement data for use with hot mixture containing asphalt or tar and aggregate up to 25.4mm maximum size.

Suitable for operation on 220V, 50 Hz, single phase, AC supply.

Single Speed, Bench top load frame. Max. loading capacity, 50 KN

Specifications :- Maximum Vertical Clearance = 470mm

(Platen Down, Cross-head up) Minimum Vertical Clearance = 250mm (Platen up,

Cross-head down) Horizontal Clearance = 265mm

Platen Diameter = 133mm

Platen Travel = 25mm Platen Speed = 50.8mm/min

Rated Power = 375W

Breaking Head Stability Mould 1 No.

Compaction Mould Steel, cylindrical 3 Nos. Base Plate 3 Nos.

Extension Collar 3 Nos.

Compaction Pedestal, 1 No. A Mould Clamp is fitted to the top of the plate

Compaction Hammer 2 Nos.

Compaction Pedestal and Mould, weight 4.5 kg with a free fall of 457 mm

Load Transfer Bar 1 No. Sample Eject for 4” dia Sample 1 No.

Electronic Conversion Kit for Marshall apparatus

Digital Indicator two channel Load Cell 50 kN

displacement Transducer LVDT 20 mm

Dial Gauge 25mm travel,0.01mm least count 1 No.

Proving Ring capacity 25 kN. 1 No.

Concrete Mixture

DESCRIPTION

Pan type ,min. 40L capacity, Material of Construction: low carbon mild steel, Hardness of platen: 50RHC, efficient mixing in dry and wet conditions. Suitable for aggregate size upto 20mm. The drum is driven off the ribbed base. The lid with mixing paddles clears off the top of the drum to provide maximum access to operator. Overall Dimension: 910mm x 875mm x1250mm, Motor: 2HP, 960rpm, Adjustable blades, Suitable for operation on 440V, 50 Hz, 3 phase, AC Supply
