SLUMP TEST APPARATUS

DESCRIPTION

Slump Test Apparatus with testing rod and base plate, consisting of Slump Cone, Base plate (200mm and height 300mm) with swivel handle, Tamping rod steel, 16 mm dia x 600 mm length as per ISI 7320

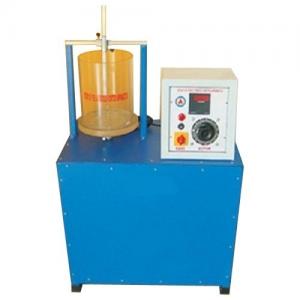

FORCED VORTEX APPARATUS

MAKE :CREATIVE LAB
MODEL NO: CLFM-20

DESCRIPTION :

The experimental set up consist of a circular transparent cylindrical tank in which plate is rotated with the help of a variable speed motor so that the cylinder rotates about its vertical axis with the help of a V belt and forced vortex is formed. An upper probe can be transversed horizontally & vertically across full diameter of the vessel so that water surface profile can be measure. Both axes contain graduations so that exact position of the probe is known. The experimental procedure involves measurement of the resulting free surface that represents the variation of the sum of the pressure head and datum head. An arrangement is provided to drain the vessel.

EXPERIMENTATION:

To plot the surface profile of a forced vortex by measurement of the surface profile coordinates.

UTILITIES REQUIRED :

Electricity Supply: Single Phase 220 V AC, 50 Hz, 5-15 amp socket with earth connection.

Water Supply (Initial fill).

Drain required.

Floor Area Required: 1 m x 1 m.

Technical detail

Cylinder : Material Acrylic. Dia. 200 mm (approx.)

Height: 200mm approx.

Motor : Variable Speed, DC Motor, Compatible capacity.

Control Panel Comprises of :

Speed Control Unit, Standard make On/Off Switch, Mains Indicator, etc.

Instruction Manual : An ENGLISH instruction manual will be provided along

with the Apparatus

The whole set-up is well designed and arranged in a good quality painted structure.

FREE VORTEX APPARATUS MAKE : CREATIVE LAB MODEL NO:CLFM021

DESCRIPTION :

The experimental set up consist of a circular transparent cylindrical tank in which four circumferential jets are placed along the circumference of the cylinder near its bottom which helps in the formation of free vortex. It is assumed that the torque exerted by these jets is negligible. A pointer can be transverse horizontally & vertically across full diameter of the vessel so that water surface profile can be measure. Both axes contain graduations so that exact position of the pointer is known. The experimental procedure involves measurement of the resulting free surface that represents the variation of the sum of the pressure head and datum head. An arrangement is provided to drain the vessel.

EXPERIMENTATION:

· To plot the surface profile of a free vortex by measurement of the surface profile coordinates and to

· Show that total energy is constant throughout vortex.

UTILITIES REQUIRED:

· Electricity Supply: Single Phase 220 V AC, 50 Hz, 5-15 amp socket with earth connection.

· Water Supply (Initial fill).

· Drain required.

· Floor Area Required: 1 m x 1 m.

TECHNICAL DETAILS:

· Cylinder: Material Acrylic. Dia. 200 mm (approx).

· Height: 200mm approx

· Water Circulation : FHP Pump, Crompton make.

· Flow Measurement : Using Rota meter.

· Sump Tank : Made of Stainless Steel, Compatible capacity.

· Control Panel Comprises of: Standard make On/Off Switch, Mains Indicator, etc.

· Instruction Manual : An ENGLISH instruction manual will be provided along with the Apparatus

· The whole set-up is well designed and arranged in a good quality painted structure.

FLUIDIZED BED CHARACTERISTICS MAKE : CREATIVE LAB MODEL NO:03

DESCRIPTION:

The setup consists of a glass column with fluidizing material i.e. beads, S.S. mesh to support the beads and with calming section. Pressure drop across fluidization can be measured by manometer. The setup studies in fluidization characteristics and relationship between the velocity of the fluid and pressure drop per unit length. The apparatus is close circuit type provided with suitable capacity tank, FHP pump, necessary pipeline valves and a Rotameter to measure the flow rate of fluid. The setup is fitted on a MS frame painted with good quality paint.

EXPERIMENTATION:

To study fluidization characteristics.

To study relationship between velocity of fluid and pressure drop per unit length.

UTILITY REQUIRED:

Water Supply and Drain.

Electricity 220 V, 1 Phase.

Floor Area 0.75 m x 0.75 m.

TECHNICAL DETAIL:

Column Material Borosilicate Glass.

Packing Glass Beads

Water tank Material Stainless Steel, Capacity 30 Ltrs.

Water Circulation FHP Pump, Crompton/Sharp make.

Flow Measurement Rotameter for water

Pr. Drop Measurement Manometer

Instruction Manual will be provided along with the Apparatus

The whole set-up is well designed and arranged in a good quality painted structure.

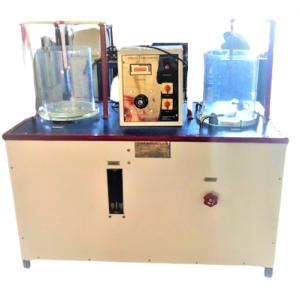

FORCED & FREE VORTEX APPARATUS MAKE : CREATIVE LAB MODEL NO-CLFM-22

DESCRIPTION :

EXPERIMENTATION:

To plot the surface profile of a forced vortex by measurement of the surface profile coordinates.

UTILITIES REQUIRED :

Electricity Supply: Single Phase 220 V AC, 50 Hz, 5-15 amp socket with earth connection.

Water Supply (Initial fill).

Drain required.

Floor Area Required: 1 m x 1 m.

Technical detail

Cylinder : Material Acrylic. Dia. 200 mm (approx.)

Height: 200mm approx.

Motor : Variable Speed, DC Motor, Compatible capacity.

Control Panel Comprises of :

Speed Control Unit, Standard make On/Off Switch, Mains Indicator, etc.

Instruction Manual : An ENGLISH instruction manual will be provided along

with the Apparatus

The whole set-up is well designed and arranged in a good quality painted structure.
