RAPID PORTABLE POCT ANALYZER

Description:

It is a real portable intelligent analyzer used for quantitative analysis of the rapid tests, quality reaches up to the excellent level compared to others. It is compatible with colloidal gold test strip only.

Test Principle

Through optoelectronic detection technology, the analyzer can get the variation against the reaction color of test strip and specimen; calculate the concentration of the object under test according to the changed color data.

Features:

Support the quantitative/semi-quantitative/qualitath, e detection

Touch graphical interface, easy operation.

Built-in Rechargeable Lithium-Polymer battery, able to use without adapter after charged.

Small size, light weight, easy to carry, suitable for families

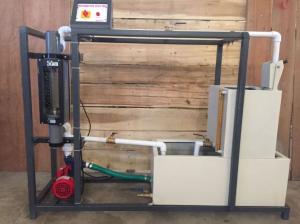

ROTAMETER TEST RIG

MAKE: CREATIVE LAB
MODEL NO: CLFM-09
DESCRIPTION:

The apparatus consists of three pipelines emerging out from a common manifold. One pipe line contain a Venturimeter, second contains an Orifice and third pipe line contains a Rota meter. The pressure tapings from the Venturimeter and Orifice meter are taken to differential manometer to measure pressure difference. The Venturimeter, Orifice meter and Rota meter are connected in parallel and any one of them can be put in operation by operating valves provided at the downstream. Present set-up is self-contained water re-circulating unit, provided with a sump tank and a centrifugal pump. Flow control valve and by-pass valve are fitted in water line to conduct the experiment on different flow rates. Flow rate of water is measured with the help of measuring tank & stop watch.

EXPERIMENTATION:

To determine the co-efficient of discharged through Venturimeter and orifice meter.

To measure discharge through Venturimeter, Orifice meter and Rota meter

To calibrate the Rotameter.

UTILITIES REQUIRED:

Electricity supply: Single Phase, 220 V AC, 50 Hz, 5-15 amp combined socket with earth connection.

Water Supply (Initial Fill).

Floor Drain required.

Floor Area Required: 1.5 m x 0.75 m.

TECHNICAL DETAILS

Rotameter: Compatible Range. Eureka makes.

Water Circulation: FHP Pump, Crompton make.

Flow Measurement: Using Measuring Tank (Capacity 25 ltrs.) and Electronic Stop Watch.

Sump Tank: Capacity 50 Ltrs.

Control Panel Comprises of: Standard make On/Off Switch, Mains Indicator, etc.

Instruction Manual: An ENGLISH instruction manual will be provided along

With the Apparatus

Tanks will be made of Stainless Steel.

The whole set-up is well designed and arranged in a good quality painted structure.

PROCTOR PENETROMETER

Description:

Proctor Penetrometer is used for establishing the moisture-penetration resistance relation of fine grained soils.

Compaction control in the field is exercised by determining the moisture content and dry density. Quick evaluation of this is done by developing curves in the laboratory, showing the relationship between moisture content versus dry density and penetration resistance, using Proctor Needles while conducting the Standard Compaction tests. Consists of a body housing a spring a plunger calibrated to read 0-40 kg x 1 kg and a handle. Two stems are provided, a larger stem and a shorter stem, both graduated at 12.5 mm intervals, to indicate the depth of penetration. The larger stem and the smaller stem are used with needles of larger and smaller areas respectively.

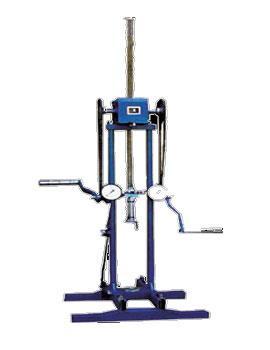

STATIC CONE PENETROMETER HAND OPERATED3000KG CAPACITY

Description:

The driver is by means of a rack and pinion ad is driven manually through a gearing arrangement. The gear box rack and pinion is fixed on two upright pillars and the movement of the rack is guided by a bracket and two pillars.

The loading is done hydraulically. Two pressure gauges 15cm dia. one of low capacity 0-60kg/sq.cm.in 0.5kg/cm.sq. divisions and other 0-160kg/cm.sq are provided to indicate the penetration resistance.

Isolation valve is provided to automatically isolate the lower range gauge when it reaches the maximum capacity. The valve can be adjusted and locked at desired values between 20 to 60kg/cm. sq.

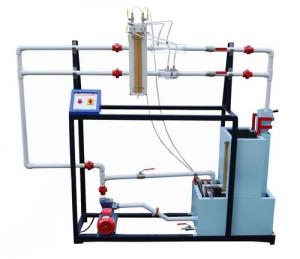

VENTURIMETER & ORIFICEMETER TEST RIG

MAKE : CREATIVE LAB
MODEL NO:-CLFM-10

DESCRIPTION:

The apparatus consists of two pipelines emerging out from a common manifold. One pipe line contain a Venturimeter and other contains an Orifice. The pressure tapings from the Venturimeter and orifice meter are taken to differential manometer to measure pressure difference. The Venturimeter and Orifice meter are connected in parallel and any one of them can be put in operation by operating valves provided at the downstream. The flow can also be regulated by these valves. Present set-up is self-contained water re-circulating unit, provided with a sump tank and a centrifugal pump etc. Flow control valve and by-pass valve are fitted in water line to conduct the experiment on different flow rates. Flow rate of water is measured with the help of measuring tank and stop watch.

EXPERIMENTATION:

To demonstrate the use of Venturimeter & Orifice meter as flow meters.

To determine co-efficient of discharge through Venturimeter and Orifice meter.

Electricity Supply: Single Phase, 220V AC, 50 Hz, 5-15 amp combined socket with earth connection.

UTILITIES REQUIRED

Water Supply (Initial Fill).

Floor Drain Required.

Floor Area Required: 1.5 x 0.75 m.

Mercury (Hg) for manometer (250 gm).

TECHNICAL DETAILS :

Venturimeter Material Clear Acrylic compatible to 1” Dia. Pipe.

Orifice meter Orifice plate made of Stainless Steel and housing made of Clear Acrylic compatible to 1” Dia. Pipe.

Water Circulation : FHP Pump, Crompton make.

Flow Measurement Using Measuring Tank with Piezometer (Capacity 25 Ltrs.) and Electronic Stop Watch

Sump Tank Capacity 50 Ltrs.

Control Panel Comprises of:

Standard make On/Off Switch, Mains Indicator, etc.

Instruction Manual : An ENGLISH instruction manual will be provided along with the Apparatus.

Tanks will be made of Stainless Steel.

The whole set-up is well designed and arranged in a good quality painted structure.
