UNIVERSAL PENETROMETER

DESCRIPTION

Used for the estimation of the consistency of lubricating grease and petroleum.

Conforming to IS: 1448 (Part 60).

Should have a base with levelling screws on which a vertical pillar is mounted.

Slipping clutch mechanism enable accurate measurement of penetration.

Automatic timer.

Operates on 220V, 50 Hz. Single-phase AC supply. Penetration Needle

Transfer Dish made of copper.

Aluminum Sample Containers-Set of two.

LOSSES DUE TO PIPE FITTINGS, SUDDEN ENLARGEMENT & CONTRACTION

MAKE : CREATIVE LAB
MODEL NO:-CLFM-06

DESCRIPTION :

The set up consists of a ½” bend and elbow, a sudden expansion & sudden contraction fitting from 15mm to 25mm, ball valve and gate valve. Pressure tapings are provided at inlet and outlet of these fittings under test. A differential manometer fitted in the line gives pressure loss of individual fittings. Present set-up is self-contained water re-circulating unit, provided with a sump tank and a centrifugal pump etc. Flow control valve and by-pass valve are fitted in water line to conduct the experiment on different flow rates. Flow rate of water is measured with the help of measuring tank and stop watch.

EXPERIMENTATION:

To determine loss of head in the fittings at various water flow rates.

To measure the loss coefficient for the pipe fittings.

UTILITIES REQUIRED:

Water Supply (Initial Fill)

Drain.

Electricity 0.5 kW, 220V AC, Single Phase.

Floor Area 1.5 x 0.75 m.

TECHNICAL DETAIL

Manometer Fluid : Mercury (Hg) - 250 gm

Sudden Enlargement : From 15mm to 25mm

Sudden Contraction: From 25mm to 15mm.

Bend : ½”

Elbow : ½”

Ball valve : ½”

Gate valve : ½”

Water Circulation: FHP Pump, Crompton make.

Flow Measurement : Using Measuring Tank with Piezometer, Capacity 25 Ltrs.

Pressure Drop Measurement: Differential Manometer

Sump Tank : Capacity 50 Ltrs.

Stop Watch : Electronic.

Control Panel Comprises of :

Standard make On/Off Switch, Mains Indicator, etc.

Instruction Manual : An ENGLISH instruction manual will be provided along with the Apparatus Tanks will be made of Stainless Steel.

The whole set-up is well designed and arranged in a good quality painted structure.

DISCHARGE THROUGH VENTURIMETER APPARATUS

DESCRIPTION:

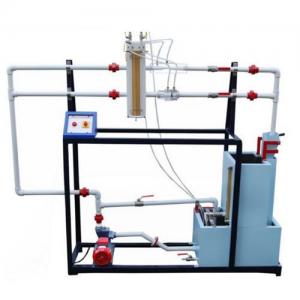

The apparatus consists of two pipelines emerging out from a common manifold. One pipe line contain a Venturimeter and other contains an Orifice. The pressure tapings from the Venturimeter and orifice meter are taken to differential manometer to measure pressure difference. The Venturimeter connected in parallel and any one of them can be put in operation by operating valves provided at the downstream. The flow can also be regulated by these valves. Present set-up is self-contained water re-circulating unit, provided with a sump tank and a centrifugal pump etc. Flow control valve and by-pass valve are fitted in water line to conduct the experiment on different flow rates. Flow rate of water is measured with the help of measuring tank and stop watch.

EXPERIMENTATION:

To demonstrate the use of Venturimeter meter as flow meters.

To determine co-efficient of discharge through Venturimeter meter.

Electricity Supply: Single Phase, 220V AC, 50 Hz, 5-15 amp combined socket with earth connection.

UTILITIES REQUIRED

Water Supply (Initial Fill).

Floor Drain Required.

Floor Area Required: 1.5 x 0.75 m.

Mercury (Hg) for manometer (250 gm).

TECHNICAL DETAILS:

Venturimeter Material Clear Acrylic compatible to 1” Dia. Pipe.

Water Circulation FHP Pump, Crompton make.

Flow Measurement Using Measuring Tank with Piezometer (Capacity 25 Ltrs.) and Electronic Stop Watch

Sump Tank Capacity 50 Ltrs.

Control Panel Comprises of: Standard make on/Off Switch, Mains Indicator, etc.

Instruction manual will be provided along with the Apparatus.

Tanks will be made of Stainless Steel.

The whole set-up is well designed and arranged in a good quality painted structure.

HEAT TRANSFER BY NATURAL CONVECTION

TECHNICAL DETAIL

Test Section : Material-Brass, Diameter: 38 mm, Length:500 mm

Heater : Nichrome Wire.

Temperature Sensors : RTD PT-100 type - 8 Nos.

Control panel comprising of PID Controller (0-199.9°C) for heater, electronic Energy meter for power measurement and Digital Temp. Indicator (0-199.9°C) with multi-channel switch, with standard make On/off switch, Mains Indicator etc.

Powder coated duct of MS to accommodate the assembly with front window of Acrylic.

The whole set-up must be well designed and arranged on a rigid structure painted with industrial PU Paint.

DISCHARGE THROUGH ORIFICEMETER

MAKE : CREATIVE LAB
MODEL NO:CLFM-08

DESCRIPTION:

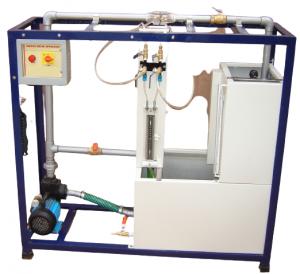

The apparatus consists of two pipelines emerging out from a common manifold. The pressure tapings from the orifice meter are taken to differential manometer to measure pressure difference. The Orifice meter connected in parallel and any one of them can be put in operation by operating valves provided at the downstream. The flow can also be regulated by these valves. Present set-up is self-contained water re-circulating unit, provided with a sump tank and a centrifugal pump etc. Flow control valve and by-pass valve are fitted in water line to conduct the experiment on different flow rates. Flow rate of water is measured with the help of measuring tank and stop watch.

EXPERIMENTATION:

To demonstrate the use of Orifice meter as flow meters.

To determine co-efficient of discharge through Orifice meter.

UTILITIES REQUIRED

Electricity Supply: Single Phase, 220V AC, 50 Hz, 5-15 amp combined socket with earth connection.

Water Supply (Initial Fill).

Floor Drain Required.

Floor Area Required: 1.5 x 0.75 m.

Mercury (Hg) for manometer (250 gm).

TECHNICAL DETAILS :

Orifice meter Orifice plate made of Stainless Steel and housing made of Clear Acrylic compatible to 1” Dia. Pipe.

Water Circulation FHP Pump, Crompton make.

Flow Measurement Using Measuring Tank with Piezometer (Capacity 25 Ltrs.) and Electronic Stop Watch

Sump Tank Capacity 50 Ltrs.

Control Panel Comprises of:

Standard make On/Off Switch, Mains Indicator, etc.

Instruction Manual :An ENGLISH instruction manual will be provided along with the Apparatus.

Tanks will be made of Stainless Steel.

The whole set-up is well designed and arranged in a good quality painted structure.
