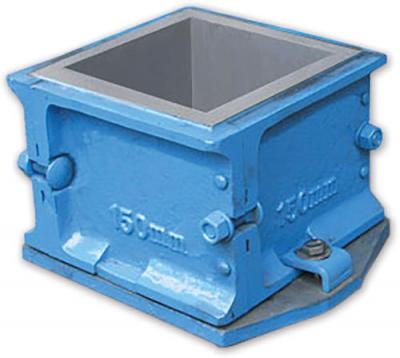

| Cube Moulds |
| Cast Iron, for 150mm Cube with ISI Certification IS:10086
Angle between adjacent interior faces and between interior faces and top and bottom plates of mould-90+/-0.5Deg
length of base plate -Min. 280mm
Width of base plate -Min. 215mm
Machined flat to +/- 0.02 mm of accuracy and finished to within +/- 0.2 mm of specified dimensions. Approx wt minium to14kg |
|
|
|
| Le Chatelier |
| Le-Chatelier Flask,determination of specific gravity of hydraulic cement as specified in IS:4031-1968. |
|
|
|
| Le-Chatelier Apparatus |
| Le-Chatelier Mould with IS 269, 712 6392 Part-IX. This unit comprises of a metal sleeve with a hook and set of screw to fit over one of the mould pointers and a clamp to fit on to the other pointer of the mould. |
|
|
|

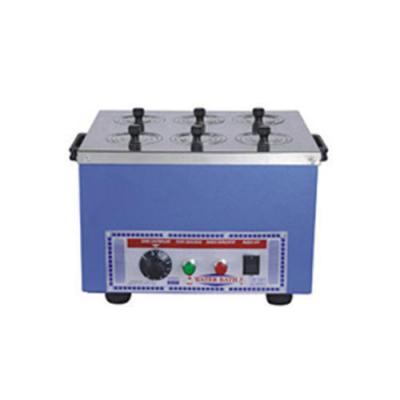

| Le-Chatelier Water Bath |
| Le-Chatelier Water Bath with Controller Min. size 12"x9"x12".made of stainless steel, complete with removable rack to hold min. 6 moulds. |
|
|
|

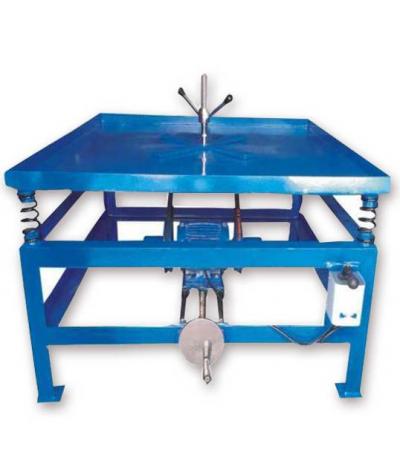

| Vibration Table |
| The apparatus consists of a motor fitted with a variable pitch pulley housed in a cabinet. The vibrations are imparted by means of off-balance masses rotating on a shaft of a vibrator clamped to the underside of the table top. The table top is 50cm x 50cm. and has stops along its edges to prevent moulds from walking off the table during vibration. A cross arm adjustable on a vertical rod at the center of the table is provided to hold the moulds while operating the table. The variable pitch pulley arrangement permits the frequency to be varied step lessly between a maximum of 3600 vibrations down to 2600 vibrations per minute. A speed regulation handle is provided for increasing or decreasing the frequency. A switch is provided for starting the motor, suitable for operation on 440 volts, 3 phase, 50 cycles, A.C. supply. |
|
|
|
