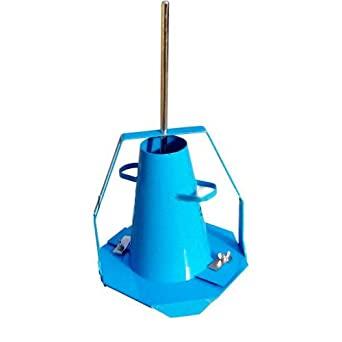

| Slump Test Apparatus |
| Slump Test Apparatus with testing rod and base plate, consisting of Slump Cone, Base plate (200mm and height 300mm) with swivel handle, Tamping rod steel, 16 mm dia x 600 mm length as per ISI 7320 |
|
|
|

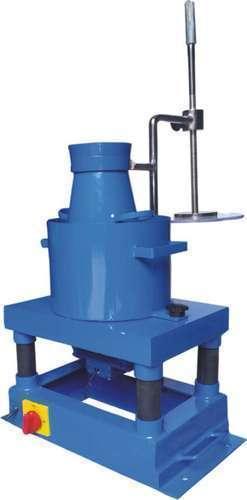

| Vee bee Consisto meter |
| Material of Construction:Special quality low carbon mild steel with good paint quality Vibrator Table : Min 380*260. Four rubber shock absorbers with A.C. supply motor 415 volts, 3 phase, One metal pot, One slump cone, One swivel arm with metal cone, One graduated rod, One perspex disc. One tamping rod as per IS 1199 |
|
|
|
| Oven |
| Laboratory Electric Oven, with Digital Indicator Cum Controller with Safety Alarm, range 50° to 250°C +/-1°C with Air Circulating Fan, S.S. Inside Minimum Size 450 x450 x 450mm |
|
|
|

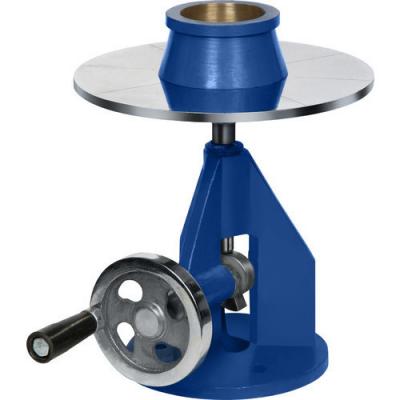

| Flow Table |
| Motorised, Ref IS:- IS:1199-1959.The Flow Table top should be min. 76.2 cm dia, finely machined from a solid brass casting. The stand is a of cast iron and is of sturdy construction, Holes for mounting on foundations are drilled in the base plate. Ground and
hardened steel cam is designed to drop the table by 12.5 mm with an electric geared motor (One separate Motor Unit complete with a reduction gear) with Min. 100 RPM, The equipment is supplied along with flow mould (The min. base internal diameter is 25 cm, top internal diameter is 17 cm and the height is 12 cm) and tamping rod (made of steel, 16mm in diameter, 60 cm long and rounded at the one end). Suitable for operation with 220 volts, 50 Hz, single phase, AC Supply. |
|
|
|

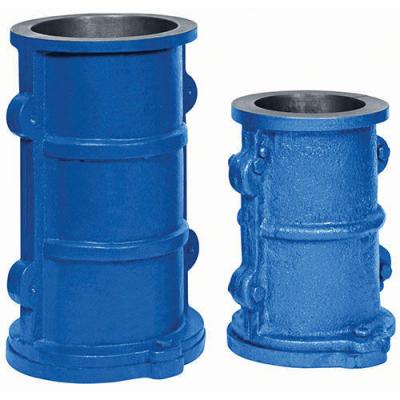

| Cylindrical Moulds |
| Cast Iron, Split Lengthwise 150mm dia x 300mm high with baseplate and top plate |
|
|
|
