FLOW TABLE

DESCRIPTION

Ref IS:- IS:1199-1959.The Flow Table top would be min. 76.2 cm dia, finely machined from a solid brass casting. The stand isa of cast iron and is of sturdy construction, Holes for mounting on foundations are drilled in the base plate. Ground and hardened steel cam is designed to drop the table by 12.5 mm with an electric geared motor (One separate Motor Unit complete with a reduction gear) with Min. 100 RPM, The equipment is supplied alongwith flow mould (The min. base internal diameter is 25 cm, top internal diameter is 17 cm and the height is 12 cm) and tamping rod (made of steel, 16mm in diameter, 60 cm long and rounded at the one end). Suitable for operation with 220 volts, 50 Hz, single phase, AC Supply.

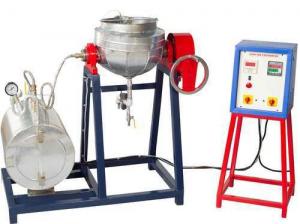

OPEN PAN EVAPORATOR

MAKE : CREATIVE LAB
MODEL NO: CLHT-28

DESCRIPTION:

Evaporation is a process for concentrating a solution by vaporizing part or all of the solvent. In most of the cases the solvent is water. The Pan Evaporator set-up is designed to study the fundamentals of evaporation process. The set-up consists of a jacketed pan evaporator made of stainless steel and an electrically heated steam generator of suitable capacity. To evaporate the solution in pan, steam is allowed to enter in the jacket using a control valve. Condensate is collected from steam trap for energy measurement. Tilting is done by a worm gear arrangement to empty the pan.

EXPERIMENTATION

To determine the overall heat transfer co-efficient under unsteady state conditions at different temperatures.

To determine the heat transfer co-efficient at the boiling point.

UTILITIES REQUIRED

Water Supply.

Drain.

Electricity Supply: 1 Phase, 220 V AC, 5 kW.

Required Chemicals.

TECHNICAL DETAILS

Evaporator Hemi-spherical, Jacketed type, made of stainless Steel insulated from outside. Dia. 300 mm approx.

Steam Generator Made of stainless steel, provided with Pressure Gauge & Level Indicator, Safety valve and drain etc. & insulated with ceramic Wool and cladding With Aluminium foil.

Condensate Measurement Using Measuring Cylinder & Stop watch.

Temp. Measurement By RTD Pt-100 Sensor

Special arrangement to measure the evaporated volume of solvent is done.

Control panel comprises of

Digital Temp/ Controller 0-199.90C, (For Steam Generator)

Digital Temp. Indicator :0-199.90C

With Standard make On/Off switch, Mains Indicator etc.

Instruction Manual An ENGLISH instruction manual will be provided along with the Apparatus

The whole set-up is well designed and arranged in a good quality painted structure.

DSB SSB AMPLITUDE MODULATION TRANSMITTER KIT

TECHNICAL SPECIFICATIONS

Receiver Principle : Superheterodyne

Frequency range: 525KHz to 1625 KHz

Optional Frequency : 400KHz to 1.5 M

Intermediate Frequency : 455 KHz

Inputs: RF Signal

Output : IF frequency 455 KHz adjustable

RF Amplifier with variable gain

Mixer(Frequency converter) : I/P : Local Oscillator & RF O/P frequency: 455 KHz adjust.

Local Oscillator : Output signal : Sine wave for local Osc. Input. Frequency: From 900KHz to

2.2 MHz gang tuned, Amplitude: Adjustable from 0 – 2 V p-p, Output Impedance: 50 Ohms

Ist IF & IInd IF Amplifier: Central frequency: 455 KHz, Load Impedance: Variable R-L-C

Gain : Automatic Gain Control, Gain 1-43 dB & Gain 2–47dB

Diode Envelope Detector: Detection of the positive and negative envelope with variable R-C filter DSB

Product Detector :Operating frequency: Adjustable from 400KHz to 500KHz

SSB Input Amplitude : 1 Volt p-p

Audio Output :Amplifier with Headphone, Audio Amplifier Gain: 20 dB

Fault Switches : 8 nos. through 8 way DIP switch for troubleshooting at different blocks

Test Points : More than 30

Receiving Media :MV Coil antenna & via cable

Cabinet : Enclosed in ABS plastic cabinet with detachable cover

Power : 220V AC ±10%, 50/60Hz

Accessories : Patch Cords, User’s manual

STEAM JET REFRIGERATION SYSTEM

Technical detail
Consists of steam ejector, an evaporator, a condenser mounted on a board as shown in the picture. Necessary valves at the inlet & exit of the ejector, and between ejector and evaporator are provided in this Steam Jet Refrigeration Test Rig for the flow variation and maintaining the pressure differential. An insulated water sump is used in Steam Jet Refrigeration Test Rig as a source of circulating water. A small submersible pump is fitted in the sump for the circulation water through the system.Steam generator: water tank with heater, level indicator and refrigerant pressure vesselØ Condenser: glass vessel with coil.

Temperature sensors with display and measuring point switch.Evaporator: glass vessel with heater and float type expansion valveØ Bench-top demo model of a Refrigeration System with a steam jet thermocompressor to generate low pressures.

Pressostats and safety valves.standard Electric supply Voltage, current and pressure display. Accurate in testing Efficiently maintains the pressure differential

Working can be easily understood Eco-friendly
Indicates temperature at all levels
Easy to use

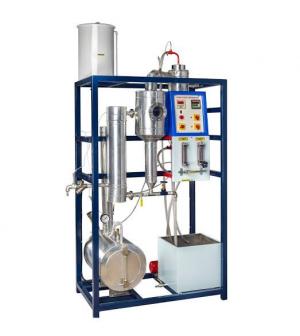

SINGLE EFFECT EVAPORATOR

MAKE: CREATIVE LAB
MODEL NO:-CLHT-29

DESCRIPTION:

Evaporation deals with the concentration of a non-volatile solute from a solution by the removal of required amount of volatile solvent. Usually the solvent is water. By vaporizing a part of the solvent, useful product i.e. the concentrated solution or thick liquor is produced and the vapour is discarded. Long tube evaporators are usually used for the concentration of foamy liquids. The set-up consists of stainless steel tubessurrounded by a stainless steel jacket and fitted with accumulator. Dilute solution is feed to tubes. Steam from a steam generator is supplied to shell to concentrate the dilute feed solution to a desired level. The jacket is fitted with a steam trap and the condensate is collected at the end of trap. The vapours of volatile solvent are condensed in a shell & tube type condenser and the balance non-volatile solute collected in the accumulator is recycled through the evaporator.

EXPERIMENTATION:

To concentrate a solution and to evaluate the following at steady state:

Material and Heat Balance.

Economy and the capacity of the evaporator.

Overall heat transfer co-efficient.

UTILITIES REQUIRED:

Water supply 5 lit/min (approx.) and Drain.

Electricity Supply: 1 Phase, 220 V AC, 4 kW.

Required Chemicals.

TECHNICAL DETAILS

Evaporator : Material stainless steel

Shell Dia - 75mm, Length - 750mm,

Tubes Dia - 12mm, Length - 750mm

Feed Circulation : By Gravity feed

Feed Tank: Material stainless steel, Capacity 25 Ltrs.

Flow Measurement : Rotameters (One each for feed & cold water).

Steam Generator: Made of stainless steel provided with Pressure Gauge & Level Indicator, Safety valve and drain etc. & insulated with ceramic wool and cladding with Aluminium foil.

Piping : Stainless Steel and PVC, size ¼”.

Condenser: Shell & Tube type made of Stainless Steel.

§ Bottom Product Tank: Made of Stainless Steel, capacity 10 Ltrs.

Water Supply Tank : Made of Stainless Steel, capacity 50 Ltrs.

For Condenser

Pump: FHP capacity

Heaters: Nichrome wire heater.

Control panel comprises of

Digital Temp. Controller:0-199.90C, (For Steam Generator)

Digital Temp. Indicator: 0-199.90C, with multi-channel switch.

Temp. Sensors: RTD PT-100, Standard make On/Off switch, Mains Indicator etc.

Instruction Manual : An ENGLISH instruction manual will be provided along with the Apparatus

The whole set-up is well designed and arranged on a good quality painted structure.
