DIGITAL LEVEL

TECHNICAL DETAIL
Digital Level With High Accuracy Of .7mm/Km, Distance Accuracy D<10 M, System With Max. Range 105 M, Min. Range 2m, Single Measurement Speed

<3 Sec, Display With Min. Resolution (Ht) 0.1mm & (Dist) 1.00mm, Telescope Magnification 24x, Compensator Range +10sec,Setting Accuracy

+0.35, Communication With Internal Memory 2000 Measurement, Protection To Water And Dust Ip55, Battery 1800mah - 2300mah,Operating Temperature-It Would Be Workable Between -30° C To +65° C, Storage Temperature-40° C To +80

CNC WIRE CUT EDM MACHINE MAKE : CREATIVE LAB MODEL NO: CLPL-07

TECHNICAL DETAIL

CNC Wire-cut EDM Machine intended to use for complex profile and thin wall cutting on various aerospace materials like Aluminum Alloys, Invar, Stainless Steels and Titanium Alloys etc. It would also cut Graphite, HSS, Carbide and CBN materials.

Table size (mm) : 510×730

Table travel(X/Y) (mm): 400×500

Max. cut thickness (mm) : 300

Travel size(U/V) (mm): (Normal):24×24 (Large taper):D- 60×60 E-130×130 T-240×240

Wire Dia. (mm): (Molybdenum wire) φ0.10ï½ž0.30

Wire speed (m/sec) : 12,9,7,5,2

Cutting speed (mm2/min): Standard: 120-140, max. cutting speed: 160-180

Max. cutting angle ±3°/100mm (15° & 30° is optional)

Process accuracy (mm): Multi-cut): 10×10×30(Square) 0.006; (Single cut)≤0.012 (Multi cut)(Octagon)≤0.009; (Straightness)≤0.006/50mm

Roughness(Ra.um): Multi-cut):Ra≤1.0 (Micro-pulse power Ra≤0.8) (Single cut):Ra≤2.0

Driving motor :Stepper motor / AC servo motor*(Optional)

Guide screw and track: Precision ball screw/Linear guide way

Tension system: Three stage(0/1/2)tension adjustable

flushing nozzle, D. M. Water (approx. 150 ltrs)

Power supply: 415V/50Hz, 2.5kw

Weight (Kg): 1700

Max Job Weight(Kg): 300

Dimension (mm): 1900×1450×1900

Standard Accessories – High Pressure coolant tank

DRO (X & Y Axis), Ceramic nozzle, Lifting motor for Z-Axis, Guider (Z axis), Steel Cover

SPANNER SET 6-17 1 SET.

2 . SPANNERS SIZE 30-32 1 SET.

ALLEN KEY SET(1.5MM-10MM) 1 SET.

4 . SCREW DRIVER 912 & 905 1 SET.

DIAL STAND M8 WITHOUT MAGNET 1 SET.

VERTICALITY BLOCK. 1 SET.

7.PLASTIC BOX FOR VERTICALITY BLOCK 1 SET.

UMBRELLA COMP 1 SET..

SPANNER 18*19. 1 SET.

CONTROLLER KEY 1 SET.

JOB CLAMP COMPLETE 1 SET.

PART PROGRAMMING SYSTEM SPECS.

System configuration for part programming system software for Job Master -Profit The System would be IBM COMPATIBLE with following minimum

Specifications: PENTIUM –IV processor with WINDOWS XP-PROFESSIONAL with 32 bit operating system

4 GB RAM

200 GB Hard Disk• 2 Serial Ports

CD Rom Drive

standard keyboard

Three button mouse• SVGA color monitor

Minimum 2 USB Port-2.0

Note: Anti-Virus Software would load on PC. N.B.: 1. additionally a CVT or UPS suitable for above selected configuration PC would be provided.

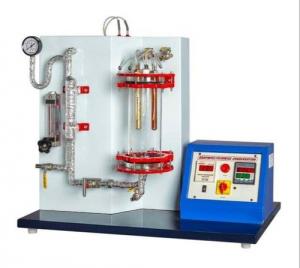

DROPWISE & FILMWISE CONDENSATION APPARATUS MAKE : CREATIVE LAB MODEL NO: CLHT-22

DESCRIPTION:

Condensation is a phase change heat transfer process occurring in many industrial applications, such as in steam power plants, refrigeration plants etc. Thus this is one of the important heat transfer process as present in mechanical and chemical engineering applications. The condensation of vapour on a surface is of two types: 1. Drop wise Condensation, 2. Film wise Condensation. This setup is designed for determining heat transfer co-efficient of two types of condensation and for visualization of these processes. It consists of a vertical frame. Condensation tubes are fitted inside compact glass cylinder. Steam generator is fitted at the backside of the cylinder. Steam comes directly from generator to the cylinder. Valves are fitted to control flow rate of water in individual tubes. Digital Temperature Indicator monitors the temperatures. Pressure gauge and Rotameter can observe steam pressure and cold water flow rates respectively. A Digital temperature Controller is provided for controlling the temperature of Steam. Water level indicator is provided in steam generator. Condensate is measured by a measuring cylinder.

EXPERIMENTATION:

To study the Film wise & Drop wise condensation of steam on a vertical surface.

Visualization of condensation process in drop wise as well as film wise condition.

UTILITIES REQUIRED

Water supply 5 lit/min (approx.)

Electricity Supply: 1 Phase, 220 V AC, 1.5 kW.

Table for set-up support.

TECHNICAL DETAILS

Steam Generator 8 Ltrs. (Approx.) made of Stainless steel with 1.5

kW heater. Insulated with ceramic wool and cladded by aluminum foil.

Pressure Gauge Bourdon type.

Copper tubes (2 Nos.) One with natural finish and other nickel polished.

Diameter: 19 mm (Approx.)

Length: 170 mm (Approx.)

Water Flow measurement Rotameter.

Condensate Measurement Measuring Cylinder & Stopwatch

Control valves one each for Steam, Cooling water & Drain.

Control panel comprising of :

Digital Temp. Controller 0- 199.90C (For Steam Generator)

Digital Temp. Indicator 0-199.90C, with multi-channel switch.

Temperature Sensors RTD PT-100 type.

With Standard make On/Off switch, Mains Indicator etc. Instruction Manual : An ENGLISH instruction manual will be provided along with the Apparatus

The whole set-up is well designed and arranged on a Powder Coated structure.

LE-CHATELIER WATER BATH

Description

Le-Chatelier Water Bath with Controller Min. size 12"x9"x12".made of stainless steel, complete with removable rack to hold min. 6 moulds.

UNIVERSAL AUTOMATIC COMPACTER
