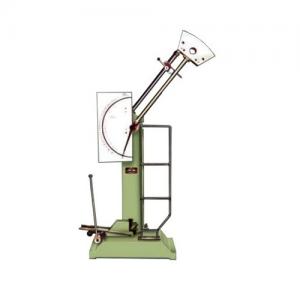

IMPACT TESTING MACHINE MAKE : CREATIVE LAB MODEL NO:CLSOM-08

TECHNICAL DETAIL
Designed for conducting Izod & Charpy Test.

Specs: CHARPY TEST IZOD TEST

Pendulum drop angle 140 deg. 85deg.

Pend. Effective wt. 20.996kg 22.059kg

Striking Velocity 5.3466m/sec 3.587m/sec

Impact energy 300J 170J

Min. scale graduation 2 J 2 J

Distance of axis of P. Rot 825mm 825mm

Max. permissible loss 0.5%.

Striking edge angle 30 deg. 75 deg.

Radius of Curvature 2.25mm 0.75mm

Width 18mm ----

TORSION TESTING MACHINE MAKE : CREATIVE LAB MODEL NO:CLSOM-09

TECHNICAL DETAIL

For conducting torsion and twist tests on various metal wires, tubes, sheet materials.

Capacity - 50kg

Ranges- , 50, 25, 25 & 10 kg-m

No. of division on dial- 500

Torsion speed & direction- Fixed Reverse

Clearance between grips- 0-500mm

Grips for round bar- 10-30mm

Width- 40 mm

Motor- 0.5 H.P.

SPRING TESTING MACHINE MAKE : CREATIVE LAB MODEL NO:CLSOM-10

TECHNICAL DETAIL

The Cabinet contains the hydraulic unit the hand wheel of the pump and the release valve handle are outside the cabinet for easy operation. This compact base carrier two fixed upright and four horizontal plates. The first and the third plates with two small uprights from an adjustable frame. The second and the fourth plates are fixed. A square threaded wheel arrangements provided for adjusting the height of the springs.

A Bourdon type Gauge is fixed for direct load measurements. One fixed upright is graduated to denote the deflections or tension of the springs for direct readings. A thimble with on arrow mark is provided to facilitate the readings. The machine is capable of accommodating 8" length 1/2" dial. rod up to 4" dia. springs for tension, 6" length 1/2" dia. rod, 4" springs for compression. Scale graduation are made up to 15 cm.

FATIGUE TESTING MACHINE MAKE : CREATIVE LAB MODEL NO:CLSOM-11

Technical Specification:

Capacity : 300 inch lbs

Diameter : 8 mm

Material : Metal

Maximum bending movement : 400 kg/cm

Power source : Electric

Speed : 2850 rpm

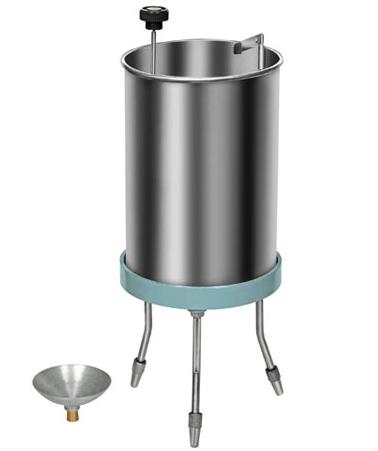

Float Test Apparatus

Used to determine the floating time of bituminous materials.

Consists of an aluminum oat and a brass collar filled with bitumen to be tested.

The specimen in the mould is cooled to a temperature of 5°C and screwed in to oat. The total test assembly is floated in the water bath at 50°C and the time required for water to pass its way through the specimen plug is noted in seconds and is expressed as the oat value.

ASTM D139 AASHTO T50
